Reassembly [08/2013 - ]: Procedure

HINT:

Fully tighten the front disc brake bleeder plug after bleeding the system.

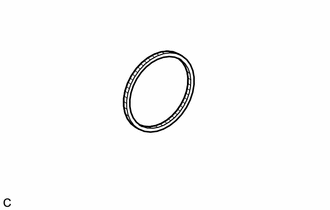

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new piston seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

2. Install the piston seal to the front disc brake cylinder.
   NOTE:

   Securely install the piston seal into the groove of the front disc brake cylinder.

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

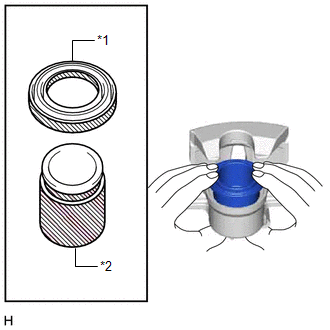

   *1	Cylinder Boot
   *2	Front Disc Brake Piston
   	Lithium Soap Base Glycol Grease

2. Install the cylinder boot to the front disc brake piston.
   NOTE:

   Securely install the cylinder boot into the groove of the front disc brake piston.

3. Apply a light layer of lithium soap base glycol grease to the contact surfaces of the front disc brake piston, and install it to the front disc brake cylinder.
   NOTE:

   Do not forcibly install the front disc brake piston into the front disc brake cylinder.

1. Install the cylinder boot to the front disc brake cylinder.
   NOTE:

   Securely install the cylinder boot into the groove of the front disc brake cylinder and front disc brake piston.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

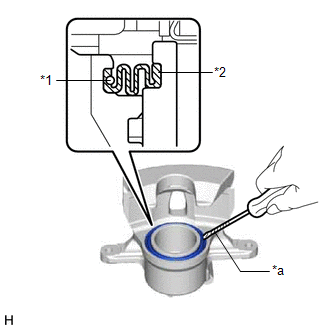

   *1	Set Ring
   *2	Cylinder Boot
   *a	Protective Tape

2. Using a screwdriver with its tip wrapped with protective tape, install a new set ring.
   NOTE:

   • Securely install the set ring into the outer groove of the cylinder boot.
   • Do not damage the cylinder boot and front disc brake piston.
