Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE HEATED OXYGEN SENSOR

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and 2 compression springs.
      GTY433175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).
  3. REMOVE FRONT FLOOR UNDER REAR REINFORCEMENT
    1. Remove the 2 bolts and front floor under rear reinforcement.
      GTY436762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)
    1. Remove the 2 bolts and 2 compression springs.
      GTY433169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.
    3. Remove the gasket from the exhaust manifold.
  5. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY (w/ Tail Exhaust Pipe Baffle)

    HINT:

    • Perform this procedure only when replacement of the tail exhaust pipe baffle sub-assembly is necessary.
    • If the tail exhaust pipe baffle sub-assembly is removed, replace it with a new one.
    1. Using a plastic hammer, remove the tail exhaust pipe baffle sub-assembly from the tail exhaust pipe assembly.

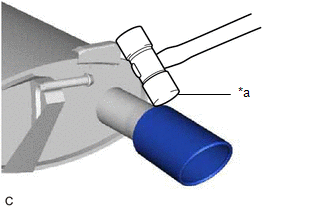

      GTY447229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plastic Hammer
