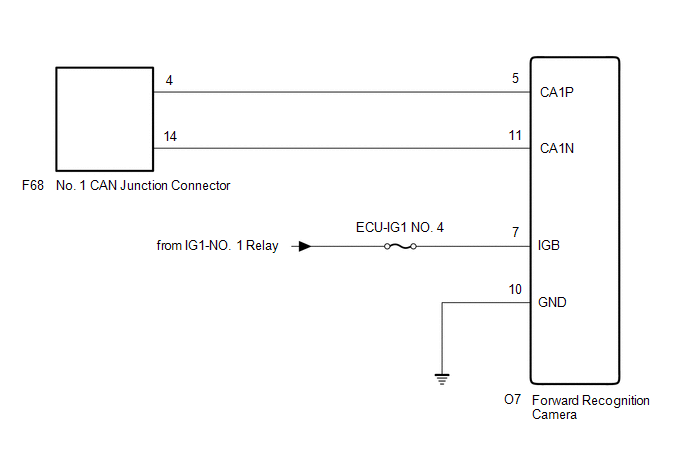

Front Camera Module Communication Stop Mode [11/2015 - ]: Wiring Diagram

GTY573225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
