Fusible Link Block Assembly Inner Circuit

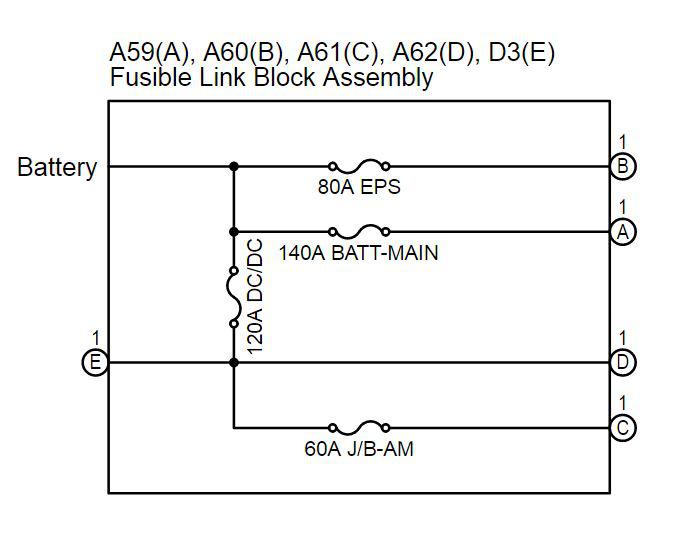

Fig 1: Fusible Link Block Assembly Inner Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
