Terminals Of ECM [11/2015 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

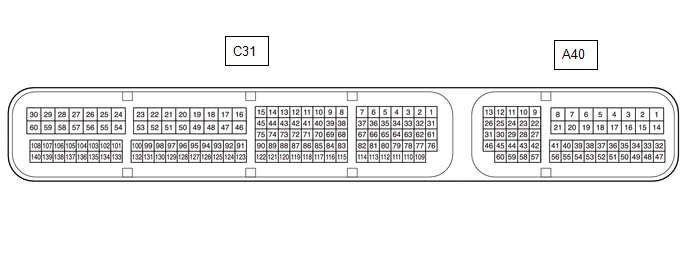

The standard voltage, resistance and waveform between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals is also indicated. The result of checks should be compared with the standard voltage, resistance and waveform for each pair of the terminals as displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

*: The ECM terminal voltage is constant regardless of the voltage output from the sensor.

1. WAVEFORM 1
   Fig 1: WAVEFORM 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAN COMMUNICATION SIGNAL (REFERENCE)



   ECM Terminal Name	Between CANH and E1 Between CAN+ and E1
   Tester Range	1 V/DIV., 10 μs./DIV.
   Condition	Engine stopped, power switch on (IG)

   HINT:

   The waveform varies depending on the CAN communication signal.

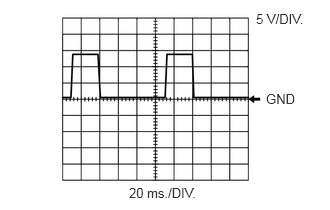

2. WAVEFORM 2

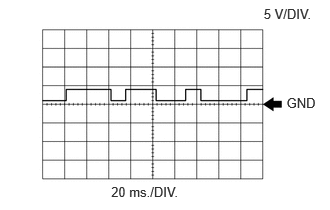

   Fig 2: WAVEFORM 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL LID OPERATION SIGNAL FOR COMBINATION METER ASSEMBLY



   ECM Terminal Name	Between LSTM and E1
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Multi-information display displaying "Please Wait Now Opening"

3. WAVEFORM 3

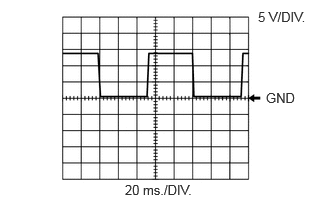

   Fig 3: WAVEFORM 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL LID OPERATION SIGNAL FOR COMBINATION METER ASSEMBLY



   ECM Terminal Name	Between LSTM and E1
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Multi-information display displaying "Close Fuel Lid"

4. WAVEFORM 4

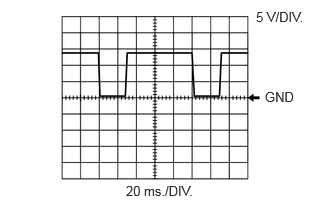

   Fig 4: WAVEFORM 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL LID OPERATION SIGNAL FOR COMBINATION METER ASSEMBLY



   ECM Terminal Name	Between LSTM and E1
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Multi-information display displaying "Refuel Ready"

5. WAVEFORM 5
   Fig 5: WAVEFORM 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAN COMMUNICATION SIGNAL (REFERENCE)



   ECM Terminal Name	Between CANL and E1 Between CAN- and E1
   Tester Range	1 V/DIV., 10 μs./DIV.
   Condition	Engine stopped, power switch on (IG)

   HINT:

   The waveform varies depending on the CAN communication signal.

6. WAVEFORM 6
   Fig 6: WAVEFORM 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT REVOLUTION SIGNAL FROM ECM TO INVERTER WITH CONVERTER ASSEMBLY



   ECM Terminal Name	Between NEO and E1
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

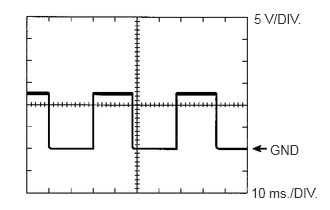

7. WAVEFORM 7
   Fig 7: WAVEFORM 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   ENGINE SPEED SIGNAL



   ECM Terminal Name	Between TACH and E1
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The wavelength becomes shorter as the engine speed increases.

8. WAVEFORM 8
   Fig 8: WAVEFORM 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR HEATER OPERATION SIGNAL



   ECM Terminal Name	Between HA1A and E04
   Tester Range	5 V/DIV., 10 ms./DIV.
   Condition	Idling with cold engine

9. WAVEFORM 9
   Fig 9: WAVEFORM 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL



   ECM Terminal Name	Between M- and ME01
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling with warm engine

   HINT:

   The duty ratio varies depending on the throttle actuator operation.

10. WAVEFORM 10
    Fig 10: WAVEFORM 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PURGE VSV OPERATION SIGNAL



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine, under purge control

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

11. WAVEFORM 11
    Fig 11: WAVEFORM 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY OPERATION SIGNAL



    ECM Terminal Name	Between OC1+ and OC1-
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling

12. WAVEFORM 12
    Fig 12: WAVEFORM 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

13. WAVEFORM 13
    Fig 13: WAVEFORM 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE WATER PUMP ASSEMBLY SIGNAL (FROM ENGINE WATER PUMP ASSEMBLY TO ECM)



    ECM Terminal Name	Between WPI and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine water pump speed increases.

14. WAVEFORM 14
    Fig 14: WAVEFORM 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE WATER PUMP ASSEMBLY SIGNAL (FROM ECM TO ENGINE WATER PUMP ASSEMBLY)



    ECM Terminal Name	Between WPO and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the engine water pump assembly speed.

15. WAVEFORM 15
    Fig 15: WAVEFORM 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT REVOLUTION SIGNAL FROM ECM TO INVERTER WITH CONVERTER ASSEMBLY



    ECM Terminal Name	Between G2O and E1
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

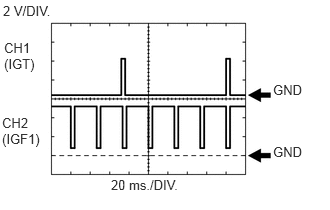

16. WAVEFORM 16
    Fig 16: WAVEFORM 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    IGNITION COIL ASSEMBLY SIGNAL (IGT AND IGF SIGNAL)



    ECM Terminal Name	CH1: Between IGT (1 to 4) and E1 CH2: Between IGF1 and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

17. WAVEFORM 17
    Fig 17: WAVEFORM 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT POSITION SENSOR SIGNAL



    ECM Terminal Name	Between VV1+ and VV1-
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

18. WAVEFORM 18
    Fig 18: WAVEFORM 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NO. 1 (TO NO. 4) FUEL INJECTOR ASSEMBLY SIGNAL



    ECM Terminal Name	Between #10 (to #40) and E01
    Tester Range	20 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

19. WAVEFORM 19
    Fig 19: WAVEFORM 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    HEATED OXYGEN SENSOR SIGNAL



    ECM Terminal Name	Between OX1B and EX1B
    Tester Range	0.2 V/DIV., 200 ms./DIV.
    Condition	Engine speed maintained at 2500 rpm for 2 minutes after warming up engine

    HINT:

    Data List item "O2 Sensor Voltage B1S2" shows the ECM values from the heated oxygen sensor.

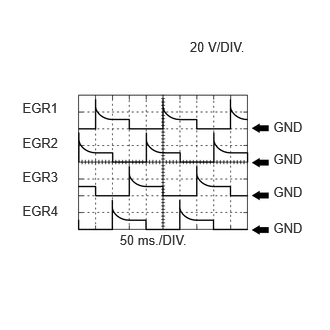

20. WAVEFORM 20
    Fig 20: WAVEFORM 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    EGR VALVE ASSEMBLY SIGNAL



    ECM Terminal Name	Between EGR (1 to 4) and E1
    Tester Range	20 V/DIV., 50 ms./DIV.
    Condition	EGR valve assembly operating

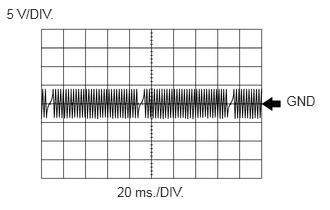

21. WAVEFORM 21
    Fig 21: WAVEFORM 21

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CRANKSHAFT POSITION SENSOR SIGNAL



    ECM Terminal Name	Between NE+ and NE-
    Tester Range	5 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

22. WAVEFORM 22
    Fig 22: WAVEFORM 22

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    KNOCK CONTROL SENSOR SIGNAL



    ECM Terminal Name	Between KNK1 and EKNK
    Tester Range	1 V/DIV., 1 ms./DIV.
    Condition	Engine speed maintained at 2500 rpm after warming up engine

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • The waveforms and amplitudes displayed will differ slightly depending on the vehicle.
