Rear View Monitor System - Diagnostics - Introduction
>>
Rear View Monitor System
>>
System Diagram [09/2016 - 05/2019]
>>
System Diagram [09/2016 - 05/2019]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2016 - 05/2019]

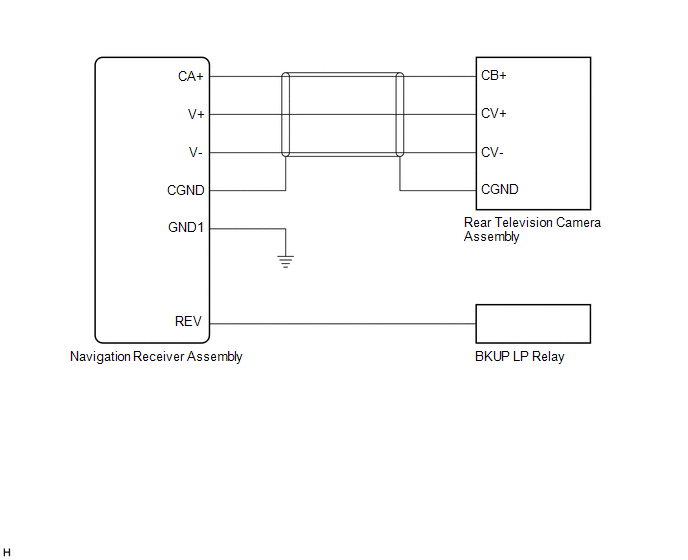

Fig 1: Rear View Monitor System Diagram [09/2016 - 05/2019]
