System Diagram [09/2016 - 05/2019]

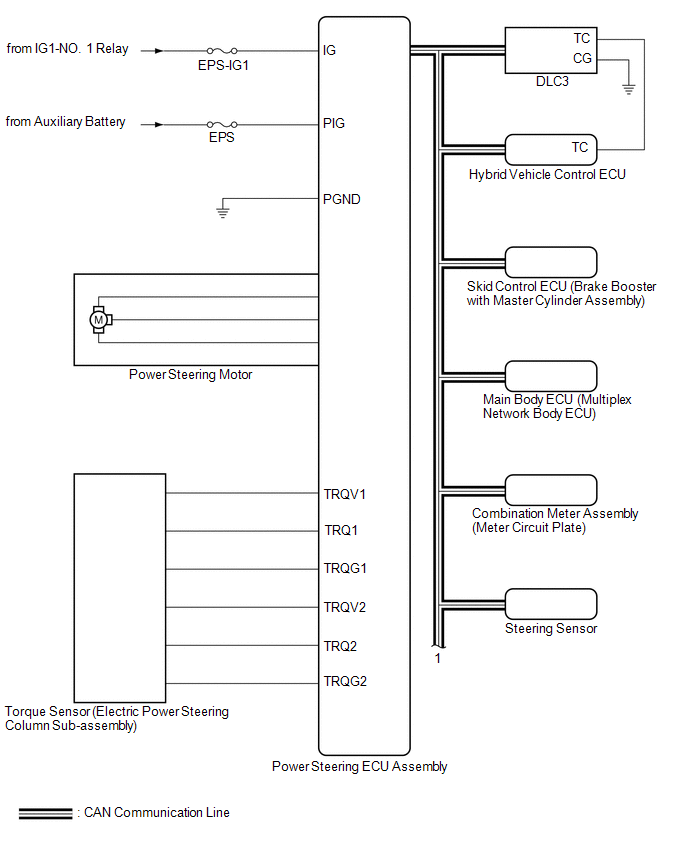

Fig 1: Power Steering System Diagram [09/2016 - 05/2019] (1 Of 2)
GTY718802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

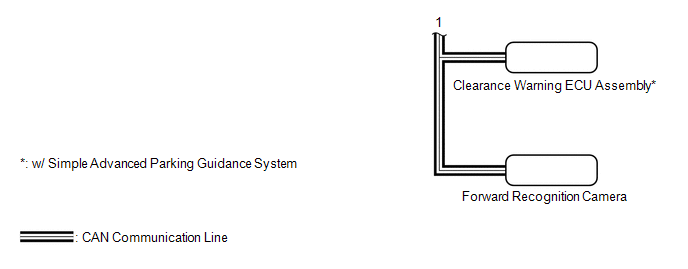

Fig 2: Power Steering System Diagram [09/2016 - 05/2019] (2 Of 2)
GTY870122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
