Motor Generator Control System - Diagnostics - Introduction (1 Of 2)
>>
Motor Generator Control System
>>
System Diagram [09/2016 - ]
>>
System Diagram [09/2016 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2016 - ]

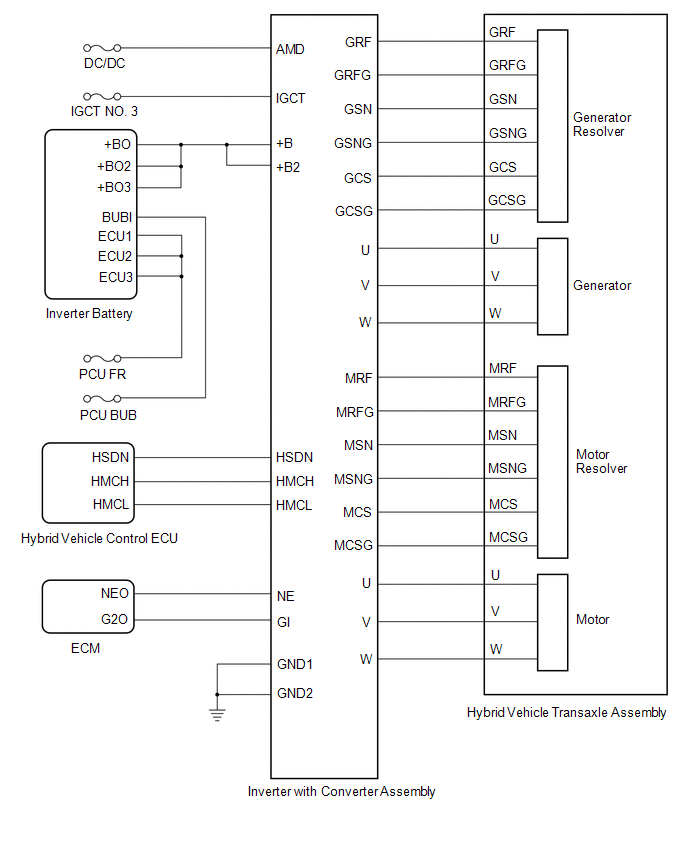

Fig 1: Motor Generator Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
