Power Steering System
>>
System Diagram [11/2015 - 12/2018]
>>
System Diagram [11/2015 - 12/2018]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

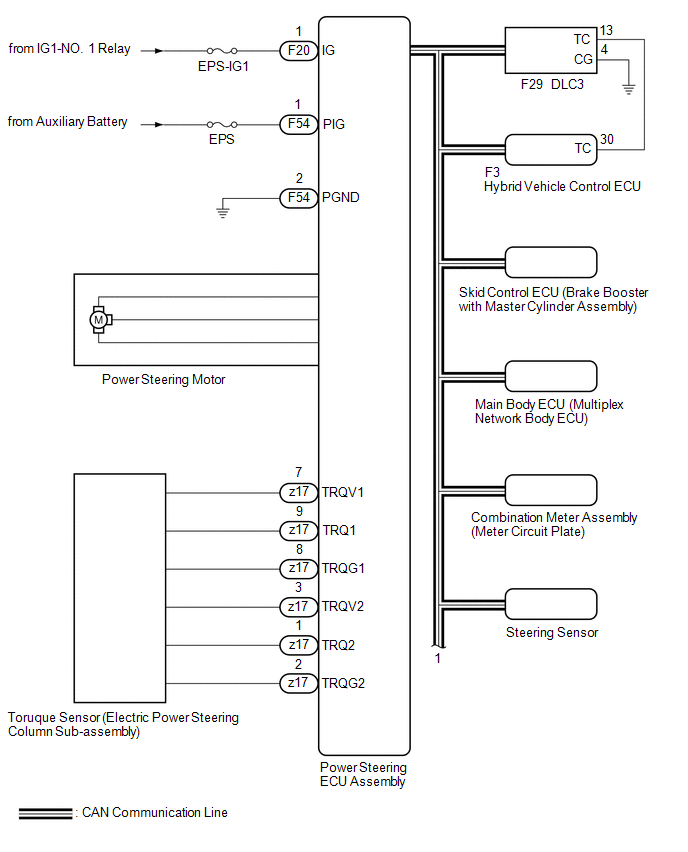

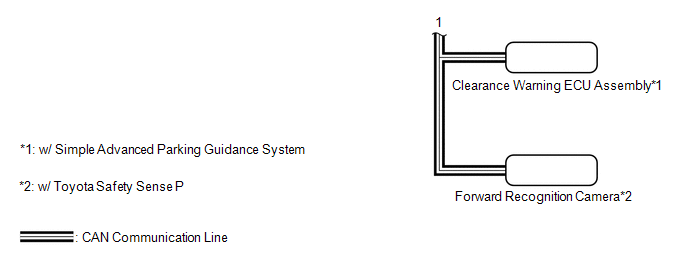

System Diagram [11/2015 - 12/2018]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
