System Diagram [11/2018 - 10/2023]

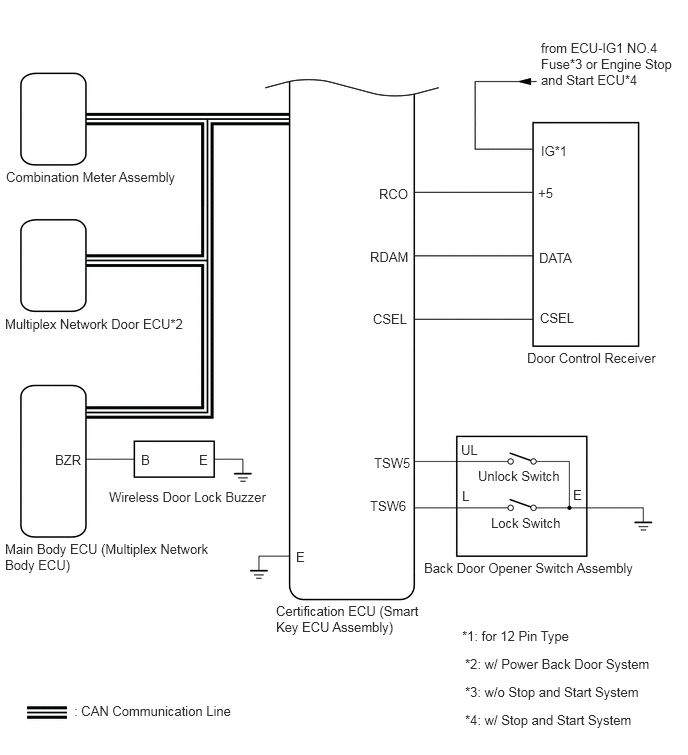

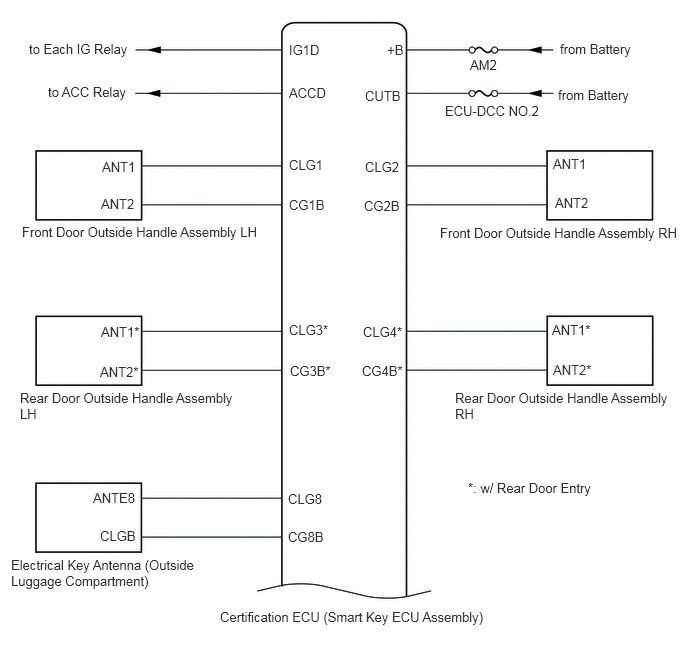

- SMART KEY SYSTEM (for Entry Function)
- SMART KEY SYSTEM (for Start Function)
Refer to SYSTEM DIAGRAM [11/2018 - 08/2020] , or refer to SYSTEM DIAGRAM [08/2020 - 12/2021] , or refer to SYSTEM DIAGRAM [12/2021 - 10/2022] , or refer to SYSTEM DIAGRAM [10/2022 - ]
- POWER DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [11/2018 - 08/2020] , or refer to SYSTEM DIAGRAM [08/2020 - ]
- WIRELESS DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [11/2018 - 08/2020] , or refer to SYSTEM DIAGRAM [08/2020 - ]
- POWER BACK DOOR SYSTEM (w/ Power Back Door System)
Refer to SYSTEM DIAGRAM [11/2018 - 10/2023]
