System Diagram [11/2018 - 08/2020]

SMART KEY SYSTEM (for Start Function)

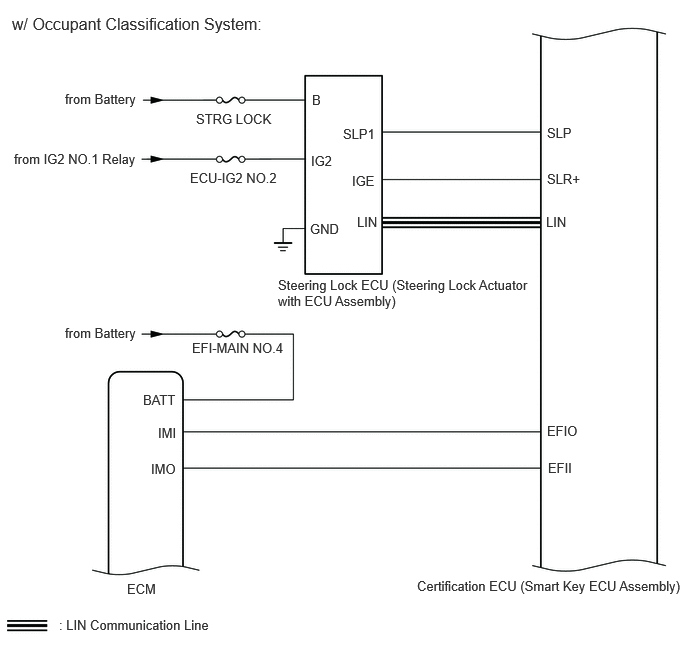

Fig 1: Smart Key System Diagram (For Start Function) (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Smart Key System Diagram (For Start Function) (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

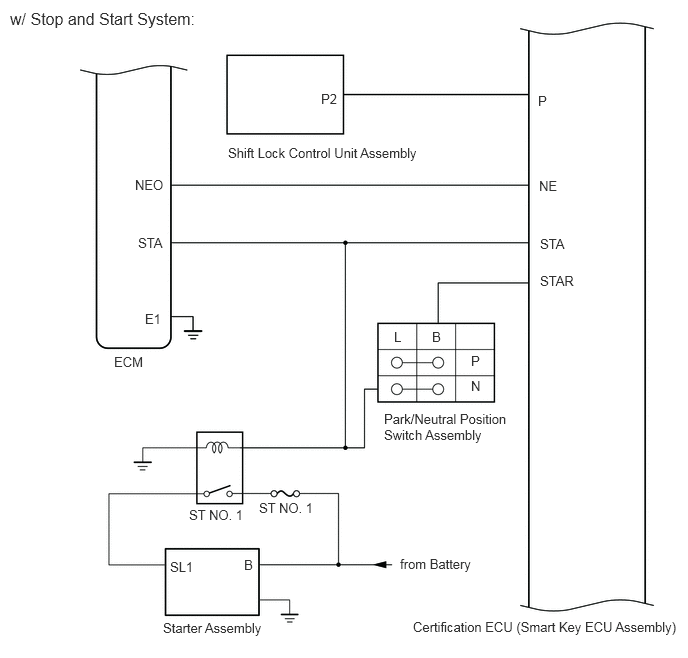

Fig 3: Smart Key System Diagram (For Start Function) (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

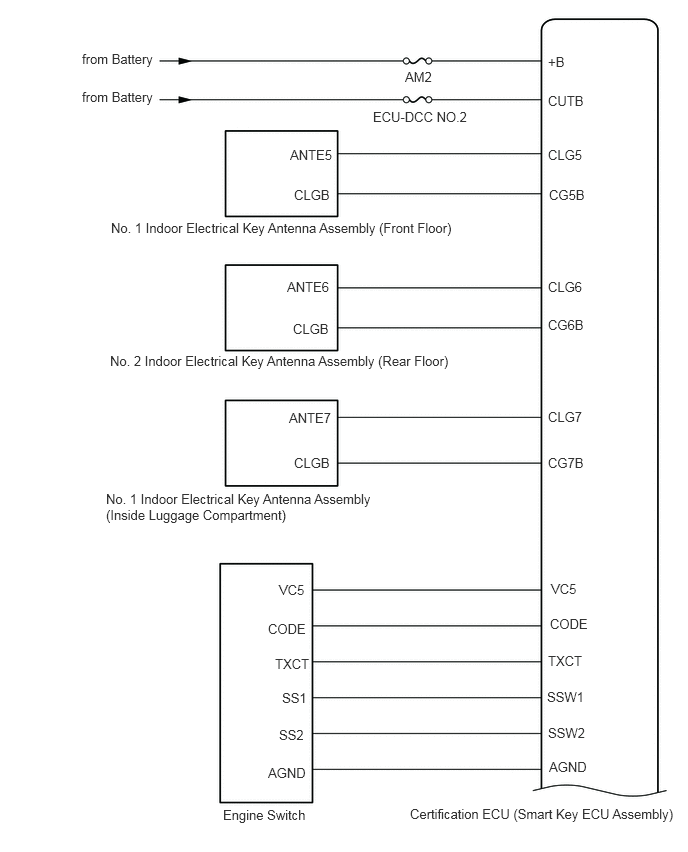

Fig 4: Smart Key System Diagram (For Start Function) (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

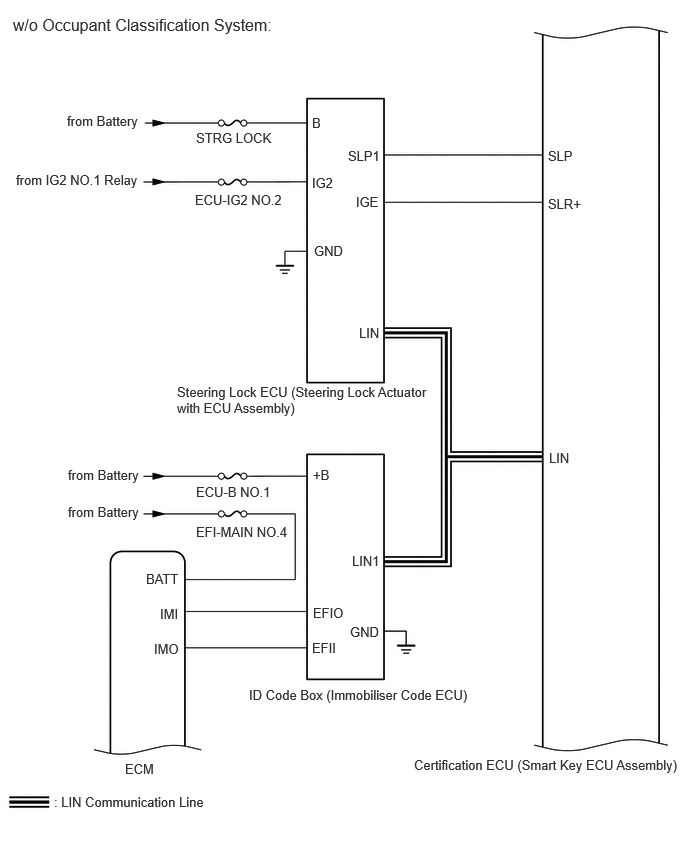

Fig 5: Smart Key System Diagram (For Start Function) (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

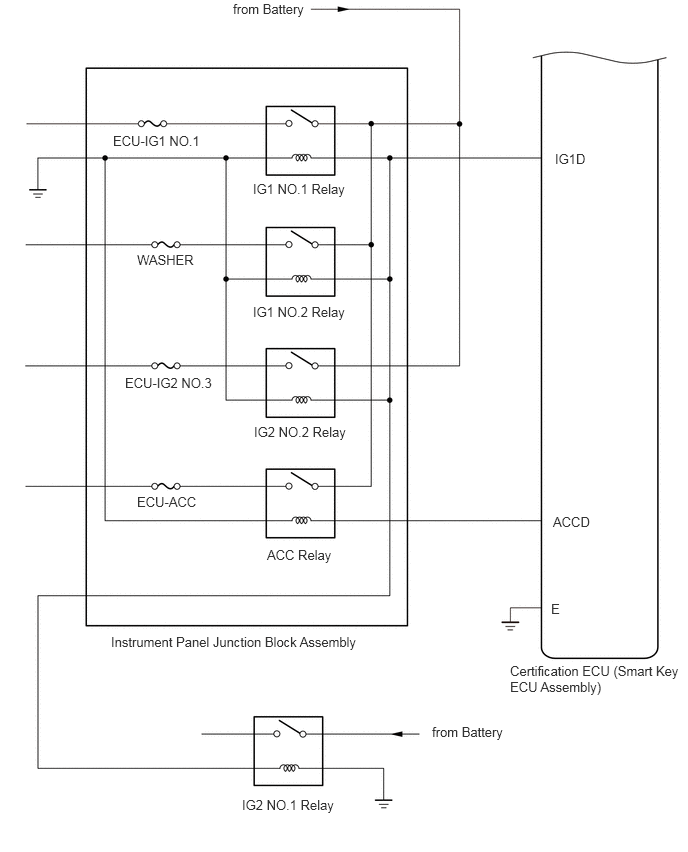

Fig 6: Smart Key System Diagram (For Start Function) (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Smart Key System Diagram (For Start Function) (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SMART KEY SYSTEM (for Entry Function)
Refer to SYSTEM DIAGRAM [11/2018 - 10/2023]
