Front Radar Sensor System - Diagnostics - Introduction
>>
Front Radar Sensor System
>>
System Diagram [12/2021 - ]
>>
System Diagram [12/2021 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [12/2021 - ]

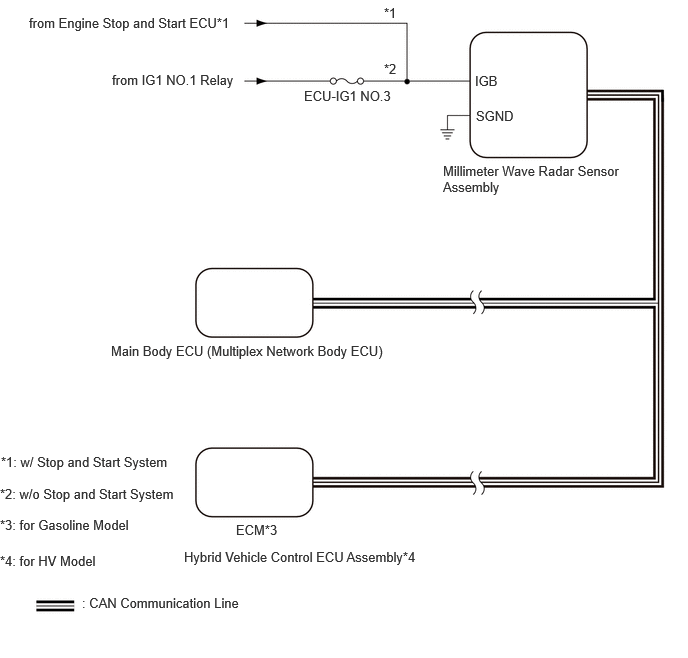

Fig 1: Front Radar Sensor System Diagram [12/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
