Drive Start Control [10/2019 - 08/2020]: Procedure

  1. SYMPTOM CONFIRMATION
    1. Interview the customer to confirm the problem.

      Result

      Result Proceed to
      Hunting A
      Hesitation/poor acceleration B

    Result:

    B

    See step  7

    Result:

    A

    See step  2

  2. PAST ACTIVATION CONFIRMATION
    1. Check if the customer operated the vehicle in a way that would cause the drive start control to operate.

      HINT:

      Drive Start Control Activation Conditions

      Shift control

      1. Activation conditions
      • Pattern A (When all of the following conditions are met, control starts.)
        • The accelerator pedal is open by approximately 1/5 or more.
        • The shift lever is moved from P to any forward position (D or S) or R.
      • Pattern B (When all of the following conditions are met, control starts.)
        • The accelerator pedal is open by approximately 1/5 or more.
        • The shift lever is moved from R to any forward position (D or S), any forward position (D or S) to R, or N to R.
          GTY944700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Items Controlled
        • Engine output is restricted.
      • Deactivation Conditions
        • The accelerator pedal is released.
        • The shift lever is in P or N.

      Reverse control

      1. Activation conditions
      • The shift lever is in R.
      • The accelerator pedal is depressed excessively.
        GTY839373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Items Controlled
        • Engine output is restricted.
      • Deactivation Conditions
        • The accelerator pedal is released.
        • The shift lever is moved to any position other than R.

      HINT:

      • The engine output restricted level differs between pattern A, pattern B and Reverse control.
      • During reverse control or shift control, engine output is adjusted based on the road gradient.

      Result

      Result Proceed to
      Performed A
      Not performed B

    Result:

    B

    SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE). Refer to  PROBLEM SYMPTOMS TABLE [11/2018 - 08/2020]

    Result:

    A

    See step  3

  3. CHECK DTC OUTPUT
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: System Select / Health Check.
    5. Check the DTCs.

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

    Result:

    B

    GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2019 - 08/2020]

    Result:

    A

    See step  4

  4. READ VALUE USING TECHSTREAM (FR, FL, RR, RL WHEEL SPEED)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Start the engine.
    5. Enter the following menus: Chassis / Brake/EPB / Data List / FR Wheel Speed, FL Wheel Speed, RR Wheel Speed and RL Wheel Speed.

      Chassis > Brake/EPB > Data List

      Tester Display
      FR Wheel Speed
      FL Wheel Speed
      RR Wheel Speed
      RL Wheel Speed
    6. Read the value displayed on the Techstream.

      Standard

      Techstream Display Condition Specified Condition
      FR Wheel Speed
      FL Wheel Speed
      RR Wheel Speed
      RL Wheel Speed      		 Vehicle stopped, engine running 0 km/h (0 mph)
      Vehicle being driven at constant speed between 16.1 to 64.4 km/h (10 to 40 mph) No large fluctuations when driving at a constant speed
      WARNING:

      When performing a drive test, obey all speed limits and traffic laws.

      HINT:

      Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    INSPECT FRONT OR REAR SPEED SENSOR

    Result:

    OK

    See step  5

  5. READ VALUE USING TECHSTREAM (OUTPUT AXIS SPEED)
    1. Connect the Techstream to the DLC3.
    2. Start the engine.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine / Data List / Output Axis Speed.

      Powertrain > Engine > Data List

      Tester Display
      Output Axis Speed
    5. Read the value displayed on the Techstream.

      Standard

      Techstream Display Condition Specified Condition
      Output Axis Speed Vehicle stopped, engine running 0 rpm
      Vehicle being driven at a constant speed of approximately 60 km/h (37 mph) No large fluctuations when driving at a constant speed
      WARNING:

      When performing a drive test, obey all speed limits and traffic laws.

      HINT:

      Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    INSPECT TRANSMISSION REVOLUTION SENSOR

    Result:

    OK

    See step  6

  6. READ VALUE USING TECHSTREAM (FORWARD AND REARWARD G)
    1. Connect the Techstream to the DLC3.
    2. Start the engine.
    3. Turn the Techstream on.
    4. Enter the following menus: Chassis / Brake/EPB / Data List / Forward and Rearward G.

      Chassis > Brake/EPB > Data List

      Tester Display
      Forward and Rearward G
    5. Read the value displayed on the Techstream.

      Standard

      Techstream Display Condition Specified Condition
      Forward and Rearward G During deceleration Value changes with vehicle speed
      During acceleration Value changes with vehicle speed
      WARNING:

      When performing a drive test, obey all speed limits and traffic laws.

      HINT:

      Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE). Refer to  PROBLEM SYMPTOMS TABLE [11/2018 - 08/2020]

    Result:

    NG

    INSPECT AIRBAG SENSOR ASSEMBLY. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [02/2019 - 08/2020]

  7. PAST ACTIVATION CONFIRMATION
    1. Check if the customer operated the vehicle in a way that would cause the drive start control to operate.

      HINT:

      Drive Start Control Activation Conditions

      Shift control

      1. Activation conditions
      • Pattern A (When all of the following conditions are met, control starts.)
        • The accelerator pedal is open by approximately 1/5 or more.
        • The shift lever is moved from P to any forward position (D or S) or R.
      • Pattern B (When all of the following conditions are met, control starts.)
        • The accelerator pedal is open by approximately 1/5 or more.
        • The shift lever is moved from R to any forward position (D or S), any forward position (D or S) to R, or N to R.

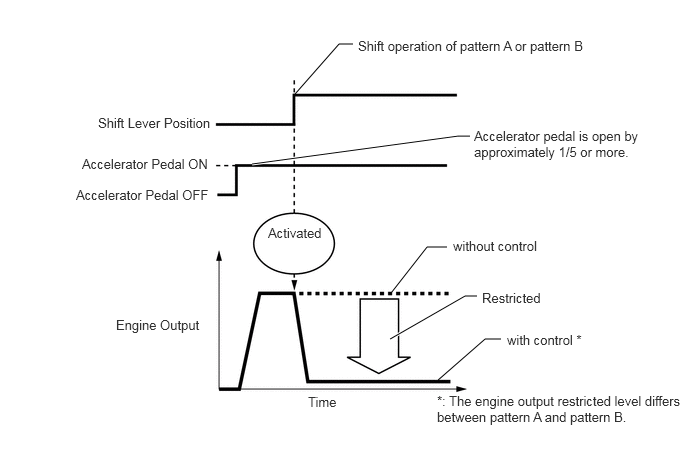

          GTY922131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Items Controlled
        • Engine output is restricted.
      • Deactivation Conditions
        • The accelerator pedal is released.
        • The shift lever is in P or N.

      Reverse control

      1. Activation conditions
      • The shift lever is in R.
      • The accelerator pedal is depressed excessively.

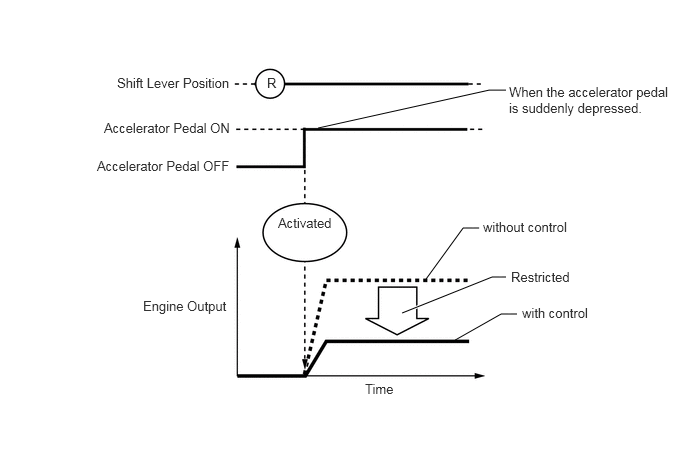

        GTY839374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Items Controlled
        • Engine output is restricted.
      • Deactivation Conditions
        • The accelerator pedal is released.
        • The shift lever is moved to any position other than R.

      HINT:

      • The engine output restricted level differs between pattern A, pattern B and Reverse control.
      • During reverse control or shift control, engine output is adjusted based on the road gradient.

      Result

      Result Proceed to
      Performed A
      Not performed B

    Result:

    A

    SYSTEM NORMAL

    Result:

    B

    See step  8

  8. CHECK DTC OUTPUT
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: System Select / Health Check.
    5. Check the DTCs.

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

    Result:

    B

    GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2019 - 08/2020]

    Result:

    A

    See step  9

  9. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the park/neutral position switch assembly.

      Result

      Result Proceed to
      Normal A
      Abnormal B

    Result:

    B

    REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

    Result:

    A

    See step  10

  10. READ VALUE USING TECHSTREAM (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE % AND NO. 2 VOLTAGE %)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine / Data List / Accelerator Position Sensor No. 1 Voltage % and Accelerator Position Sensor No. 2 Voltage %.

      Powertrain > Engine > Data List

      Tester Display
      Accelerator Position Sensor No. 1 Voltage %
      Accelerator Position Sensor No. 2 Voltage %
    5. Read the value displayed on the Techstream.

      OK

      Techstream Display Condition Specified Condition
      Accelerator Position Sensor No. 1 Voltage % Accelerator Pedal Released → Depressed Values smoothly change following accelerator pedal operation
      Accelerator Position Sensor No. 2 Voltage %

      HINT:

      For numerical values of Accelerator Position Sensor No. 1 Voltage % and Accelerator Position Sensor No. 2 Voltage %, refer to the Data List.

      Refer to DATA LIST / ACTIVE TEST [10/2019 - 08/2020]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE). Refer to  PROBLEM SYMPTOMS TABLE [11/2018 - 08/2020]

    Result:

    NG

    REPLACE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY. Refer to  REMOVAL [11/2018 - ]
