Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the ignition switch off and wait for at least 30 seconds.
- Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / Calculate Load and Coolant Temperature.

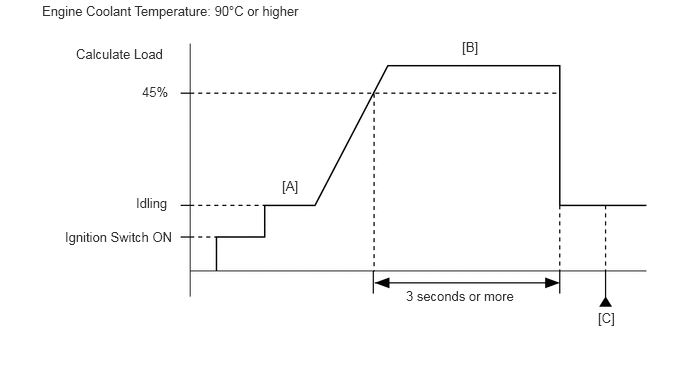

- Drive the vehicle for at least 3 seconds at the Calculate Load of 45% or more and the Coolant Temperature of 90°C (194°F) or higher [B].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Stop the vehicle.
- Enter the following menus: Powertrain / Engine / Trouble Codes [C].
- Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Input the DTC: P0597-14.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
HINT:
- If the judgment result is NORMAL, the system is normal.
- If the judgment result is ABNORMAL, the system has a malfunction.
- If the judgment result is INCOMPLETE, perform steps [B] through [C] again.
