VC Output Circuit [11/2018 - 08/2020]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to
ECM Power Source Circuit [11/2018 - 08/2020]

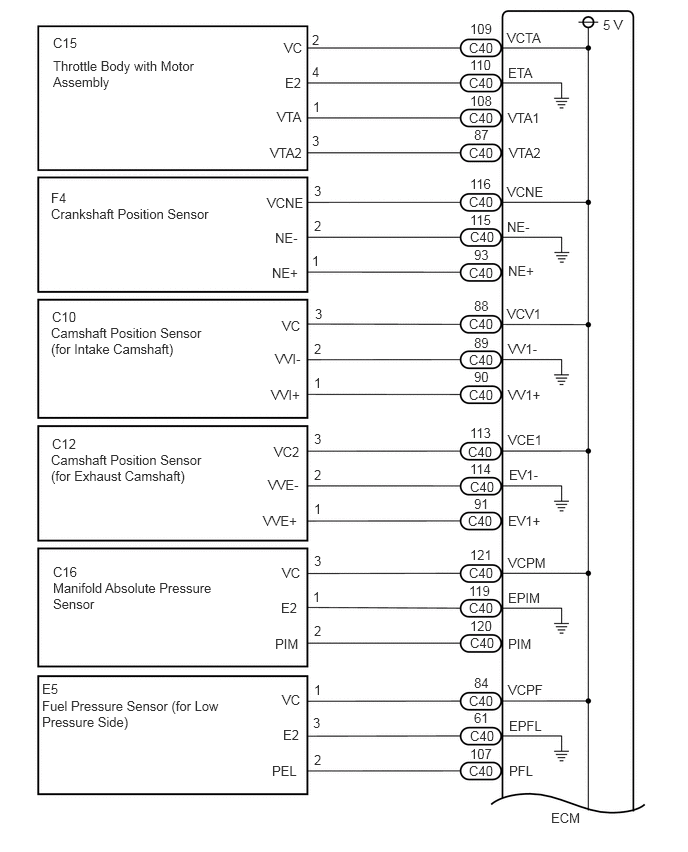

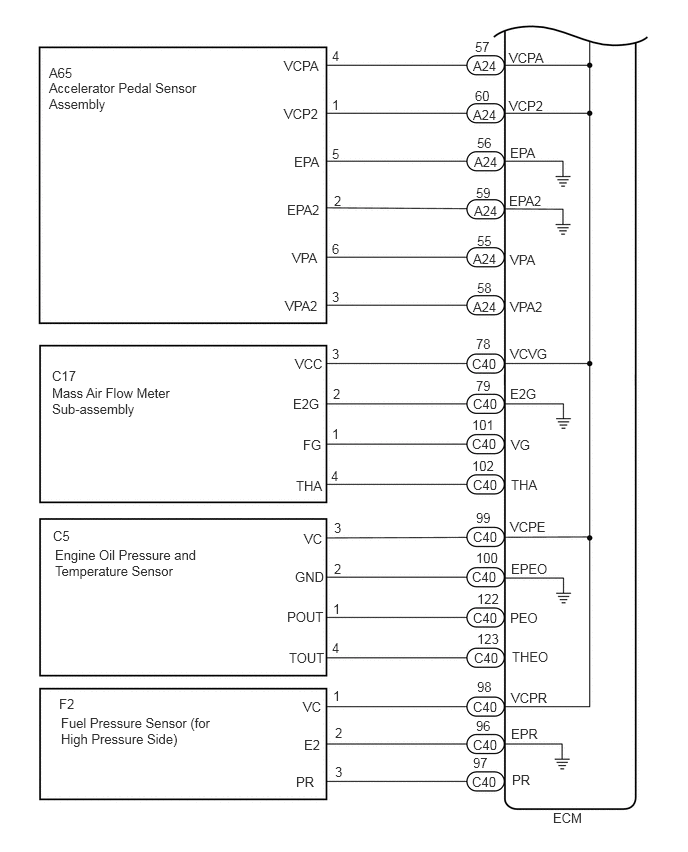

VC Output Circuit
