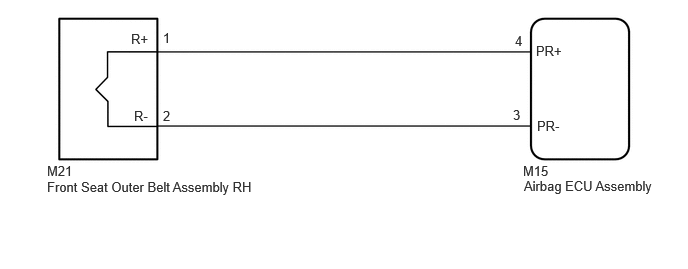

DTC B1900: Short in P/T Squib (RH) Circuit; DTC B1901: Open in P/T Squib (RH) Circuit; DTC B1902: Short in P/T Squib (RH) Circuit (to Ground); DTC B1903: Short in P/T Squib (RH) Circuit (to +B) [11/2018 - 08/2020]: Wiring Diagram

GTY1115803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
