Installation [11/2018 - 08/2020]: Procedure

1. Install the No. 2 ECM bracket to the ECM with the 2 screws.

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

1. Install the No. 1 ECM bracket to the ECM with the 2 screws.

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

1. Install the ECM with the 2 bolts and nut.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   NOTE:

   If the ECM has been struck or dropped, replace it.

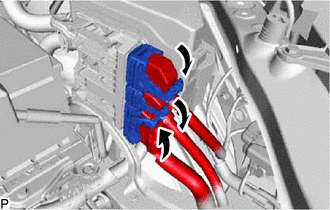

2. Connect the 3 ECM connectors and rotate the 3 levers to lock them.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
   • Be sure to securely connect the ECM connectors.

See step  2

See step  3

Refer to PROCEDURE - Step 76

Refer to INSTALLATION [11/2018 - 10/2023]

• w/ Canister Pump Module:

  Refer to PRECAUTION [11/2018 - 08/2020]

• w/o Canister Pump Module:

  Refer to PRECAUTION [11/2018 - 08/2020]
