Starter Inrush Current Reduction Relay Circuit [11/2018 - 12/2021]: Procedure

1. Connect the positive (+) lead of an oscilloscope to the positive (+) battery terminal and the negative (-) lead to the negative (-) battery terminal.
2. While cranking the engine, count the number of times the waveform drops.

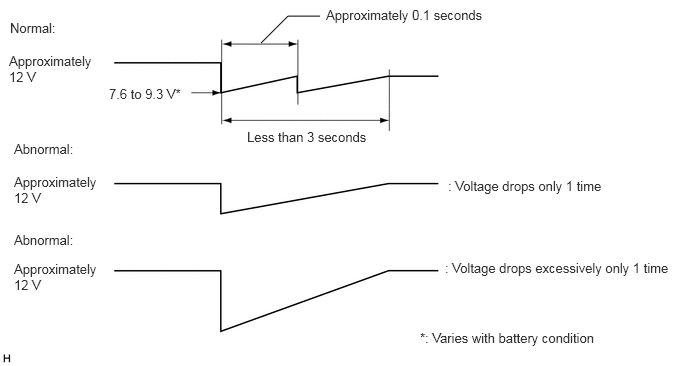

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard

   Waveform drops 2 times

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2018 - 10/2019]  , or refer to  PROBLEM SYMPTOMS TABLE [10/2019 - 10/2023]

Result:

NG

REPLACE STARTER INRUSH CURRENT REDUCTION RELAY. Refer to  PROCEDURE - Step 3 [11/2018 - 08/2020]  , or refer to  PROCEDURE - Step 2 [08/2020 - 12/2021]
