System Diagram [10/2023 - ]

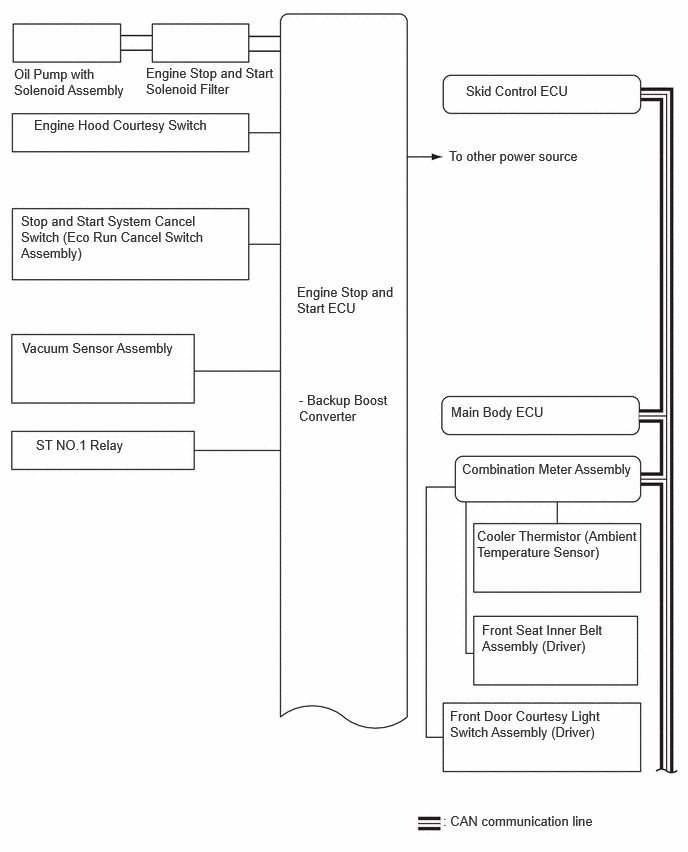

Fig 1: Stop And Start System Diagram (1 Of 2)
GTY1177284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

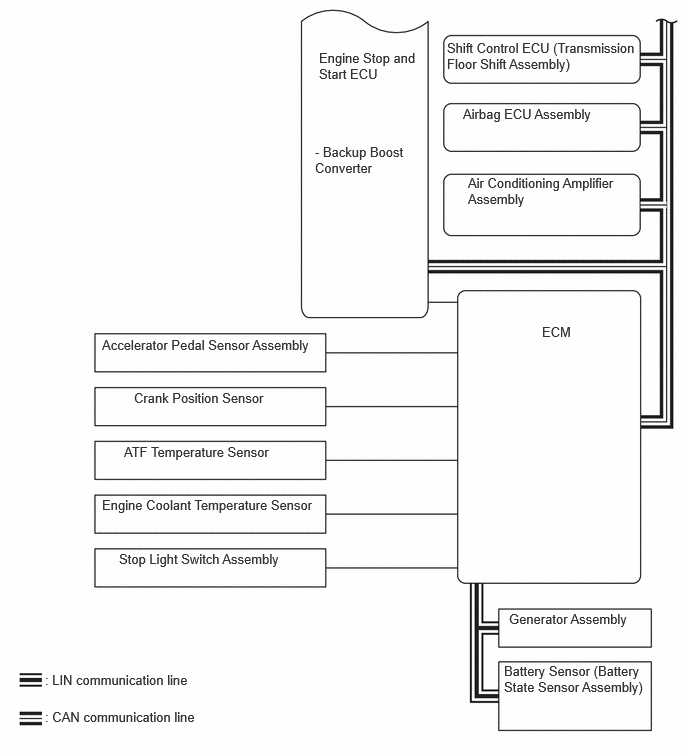

Fig 2: Stop And Start System Diagram (2 Of 2)
GTY1177511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
