DTC P00B1-11: Radiator Coolant Temperature Sensor Circuit Short to Ground [11/2018 - 08/2020]: Wiring Diagram

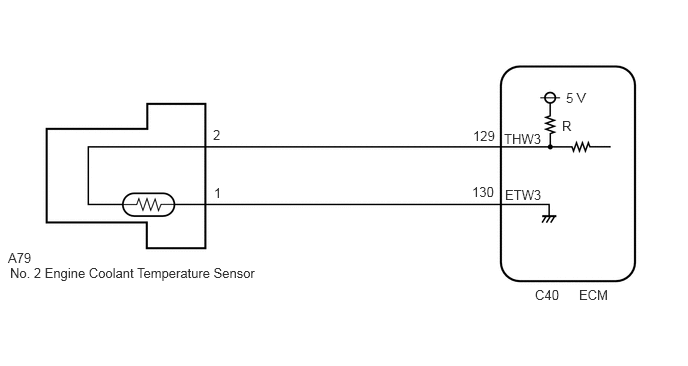

GTY885795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
