DTC P107A-11: Fuel Rail Pressure Sensor (Low) / Fuel Rail Pressure Sensor "B" Circuit Short to Ground [10/2019 - 08/2020]: Wiring Diagram

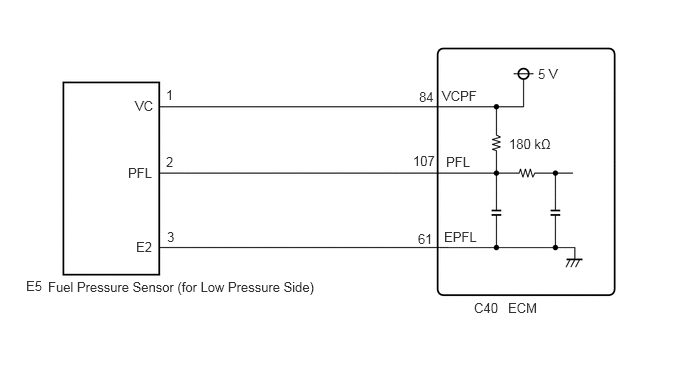

GTY842494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
