DTC P0597-14: Thermostat Heater Control Circuit Short to Ground or Open [11/2018 - 08/2020]: Procedure

  1. CHECK TERMINAL VOLTAGE (POWER SOURCE OF WATER INLET WITH THERMOSTAT SUB-ASSEMBLY)

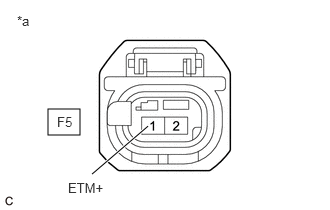

    GTY913142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Water Inlet with Thermostat Sub-assembly)
    1. Disconnect the water inlet with thermostat sub-assembly connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      F5-1 (ETM+) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  4

    Result:

    OK

    See step  2

  2. INSPECT WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
    1. Inspect the water inlet with thermostat sub-assembly.

      Refer to INSPECTION [11/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020]

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (WATER INLET WITH THERMOSTAT SUB-ASSEMBLY - ECM)
    1. Disconnect the water inlet with thermostat sub-assembly connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F5-2 (ETM-) - C40-7 (HTHM) Always Below 1 Ω
      F5-2 (ETM-) or C40-7 (HTHM) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [11/2018 - 08/2020]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. INSPECT EFI-MAIN NO. 2 RELAY
    1. Inspect the EFI-MAIN NO. 2 relay.

      Refer to ON-VEHICLE INSPECTION [11/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE EFI-MAIN NO. 2 RELAY

    Result:

    OK

    See step  5

  5. CHECK TERMINAL VOLTAGE (POWER SOURCE OF EFI-MAIN NO. 2 RELAY)
    GTY878120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 No. 1 Engine Room Relay Block and Junction Block Assembly
    *2 EFI-MAIN NO. 2 Relay
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and junction block assembly.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3 (EFI-MAIN NO. 2 relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - EFI-MAIN NO. 2 RELAY)

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - BODY GROUND)
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (EFI-MAIN NO. 2 relay) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - WATER INLET WITH THERMOSTAT SUB-ASSEMBLY)
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and junction block assembly.
    2. Disconnect the water inlet with thermostat sub-assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      5 (EFI-MAIN NO. 2 relay) - F5-1 (ETM+) Always Below 1 Ω
      5 (EFI-MAIN NO. 2 relay) or F5-1 (ETM+) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI-MAIN NO. 1 RELAY - EFI-MAIN NO. 2 RELAY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
