Engine Control System (A25A-FKS) (W/O Canister Pump Module) - Diagnostics - Introduction (1 Of 2)
>>
SFI SYSTEM (w/o Canister Pump Module)
>>
System Diagram [10/2019 - 08/2020]
>>
System Diagram [10/2019 - 08/2020]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

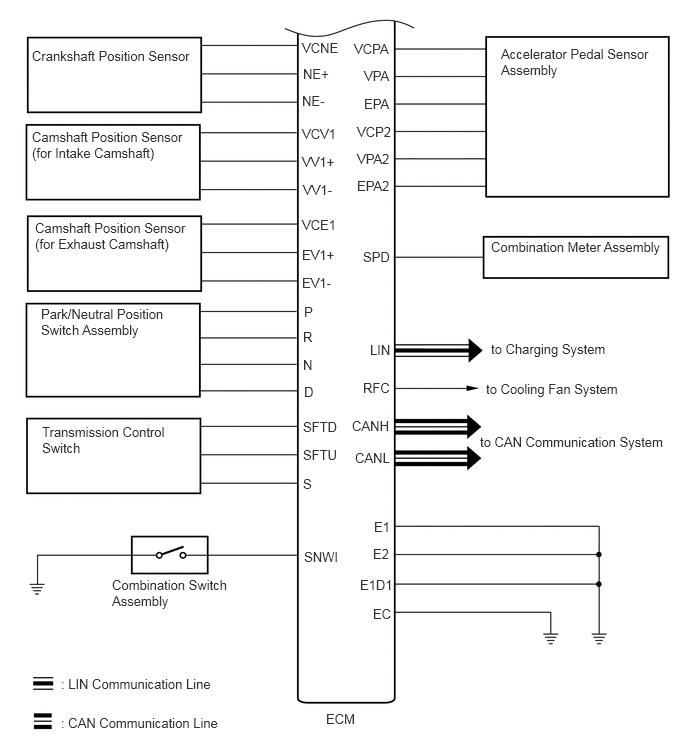

System Diagram [10/2019 - 08/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
