DTC P0069-00: Manifold Absolute Pressure - Barometric Pressure Correlation [06/2020 - 08/2020]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Trouble Codes.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTC P0069-00 is output	A
   DTC P0069-00 and other DTCs are output	B

   HINT:

   If any DTCs other than P0069-00 are output, troubleshoot those DTCs first.

Result:

B

GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2020 - 08/2020]

Result:

A

See step  2

1. Turn the ignition switch off and wait for at least 50 minutes.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON.
4. Turn the Techstream on.
5. Enter the following menus: Powertrain / Engine / Data List / Intake Manifold Absolute Pressure.

   Powertrain > Engine > Data List

   Tester Display
   Intake Manifold Absolute Pressure

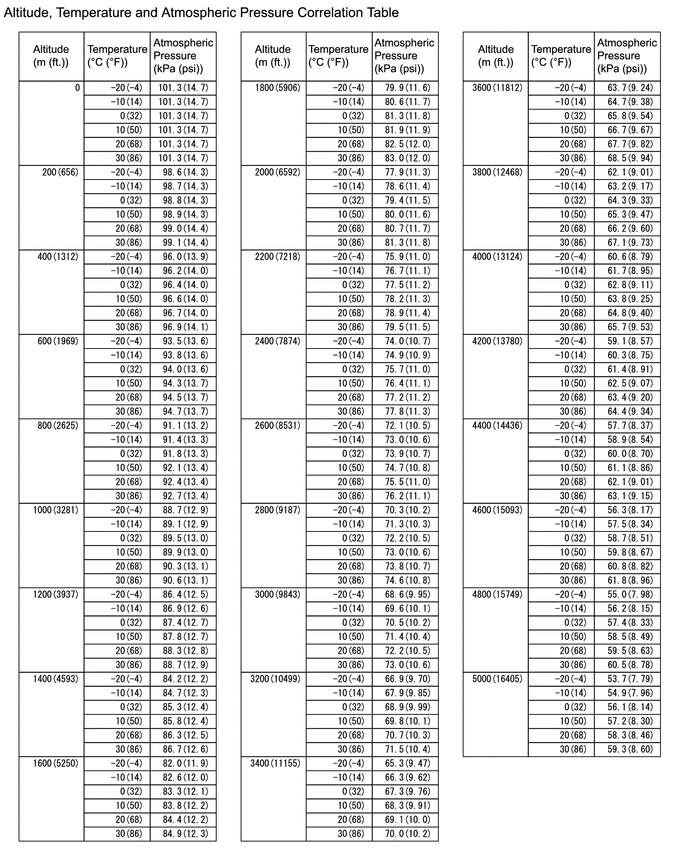

6. Using the following table, determine the normal atmospheric pressure for the current altitude and temperature.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Standard atmospheric pressure is approximately 101 kPa(abs) [15 psi(abs)].
   • For every 100 m (328 ft.) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.1 psi). This varies depending on the weather.
7. Compare the value of the Data List item Intake Manifold Absolute Pressure with the actual atmospheric pressure.

   Result

   Result	Proceed to
   Approximately the same as the actual atmospheric pressure	A
   Not approximately the same as the actual atmospheric pressure	B

Result:

B

REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR. Refer to  REMOVAL [11/2018 - ]

Result:

A

See step  3

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Data List / Atmospheric Pressure.

   Powertrain > Engine > Data List

   Tester Display
   Atmospheric Pressure

5. Using the following table, determine the normal atmospheric pressure for the current altitude and temperature.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Standard atmospheric pressure is approximately 101 kPa(abs) [15 psi(abs)].
   • For every 100 m (328 ft.) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.1 psi). This varies depending on the weather.
6. Compare the value of the Data List item Atmospheric Pressure with the actual atmospheric pressure.

   Result

   Result	Proceed to
   Approximately the same as the actual atmospheric pressure	A
   Not approximately the same as the actual atmospheric pressure	B

Result:

A

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [02/2019 - 08/2020]

Result:

B

REPLACE ECM. Refer to  REMOVAL [02/2019 - 08/2020]
