DTC P0597-14: Thermostat Heater Control Circuit Short to Ground or Open [06/2020 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK TERMINAL VOLTAGE (POWER SOURCE OF THERMOSTAT HEATER (WATER INLET WITH THERMOSTAT SUB-ASSEMBLY))

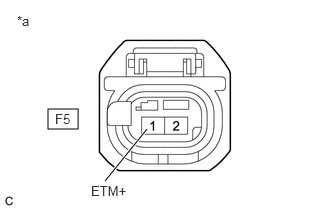

    GTY913167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Water Inlet with Thermostat Sub-assembly)
    1. Disconnect the thermostat heater (water inlet with thermostat sub-assembly) connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      F5-1 (ETM+) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  4

    Result:

    OK

    See step  2

  2. INSPECT THERMOSTAT HEATER (WATER INLET WITH THERMOSTAT SUB-ASSEMBLY)
    1. Inspect the thermostat heater (water inlet with thermostat sub-assembly).

      Refer to INSPECTION [11/2018 - 12/2021]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE THERMOSTAT HEATER (WATER INLET WITH THERMOSTAT SUB-ASSEMBLY)

    Refer to REMOVAL [10/2019 - 08/2020]

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (THERMOSTAT HEATER (WATER INLET WITH THERMOSTAT SUB-ASSEMBLY) - ECM)
    1. Disconnect the thermostat heater (water inlet with thermostat sub-assembly) connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      F5-2 (ETM-) - C45-7 (HTHM) Always Below 1 Ω
      F5-2 (ETM-) or C45-7 (HTHM) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [02/2019 - 08/2020]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. INSPECT EFI-MAIN NO. 2 RELAY
    1. Inspect the EFI-MAIN NO. 2 relay.

      Refer to PROCEDURE - Step 2

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE EFI-MAIN NO. 2 RELAY

    Result:

    OK

    See step  5

  5. CHECK TERMINAL VOLTAGE (POWER SOURCE OF EFI-MAIN NO. 2 RELAY)

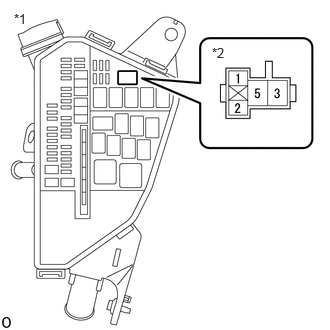

    GTY853759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly
    *2 EFI-MAIN NO. 2 Relay
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3 (EFI-MAIN NO. 2 relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - EFI-MAIN NO. 2 RELAY)

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - BODY GROUND)
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (EFI-MAIN NO. 2 relay) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - THERMOSTAT HEATER (WATER INLET WITH THERMOSTAT SUB-ASSEMBLY))
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Disconnect the thermostat heater (water inlet with thermostat sub-assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      5 (EFI-MAIN NO. 2 relay) - F5-1 (ETM+) Always Below 1 Ω
      5 (EFI-MAIN NO. 2 relay) or F5-1 (ETM+) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI-MAIN NO. 1 RELAY - EFI-MAIN NO. 2 RELAY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
