Confirmation Driving Pattern

WARNING: This page is about a different variant/trim than selected.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the Techstream to the DLC3.
Turn the power switch on (IG).
Turn the Techstream on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the power switch off and wait for at least 30 seconds.
Turn the power switch on (IG).
Turn the Techstream on.
Put the engine in Inspection Mode (Maintenance Mode).
Refer to INSPECTION MODE PROCEDURE [11/2018 - ]

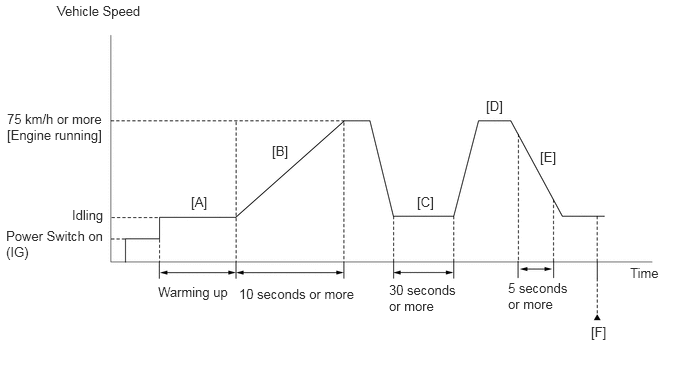

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
With the engine running, accelerate the vehicle to 75 km/h (47 mph) or more by depressing the accelerator pedal for at least 10 seconds [B].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

When accelerating the vehicle, depress the accelerator pedal more than normal to start the engine.
Idle the engine for 30 seconds or more [C].
With the shift lever in S and the engine running, accelerate the vehicle to 75 km/h (47 mph) or more [D].
WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.
Perform the fuel cut operation for 5 seconds or more, with the accelerator pedal fully released [E].
Enter the following menus: Powertrain / Engine / Trouble Codes [F].
Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC P0401-9C.

Check the DTC judgment result.

Techstream Display	Description
NORMAL	DTC judgment completed System normal
ABNORMAL	DTC judgment completed System abnormal
INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

HINT:

If the judgment result is NORMAL, the system is normal.
If the judgment result is ABNORMAL, the system has a malfunction.
