DTC P0110-11: Intake Air Temperature Sensor 1 Bank 1 Circuit Short to Ground [06/2020 - 08/2020]: Description

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

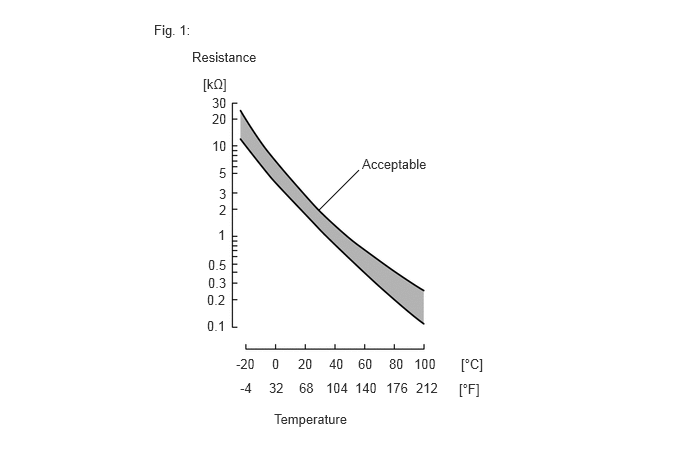

The intake air temperature sensor, mounted on the mass air flow meter sub-assembly, monitors the intake air temperature. The intake air temperature sensor is a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the intake air temperature is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (see Fig. 1 above).

The intake air temperature sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R.

Resistor R and the intake air temperature sensor are connected in series. When the resistance value of the intake air temperature sensor changes, according to changes in the intake air temperature, the voltage at terminal THA also varies. Based on this signal, the ECM performs various checks and compensations related to intake air temperature in the engine management system.

HINT:

When DTC P0110-11 is stored, the ECM enters fail-safe mode. During fail-safe mode, the intake air temperature is estimated to be 20°C (68°F) by the ECM. Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned off.

HINT:

When this DTC is output, check the intake air temperature in the Data List. Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature.

If the Data List values are normal, it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.

Refer to CHECK FOR INTERMITTENT PROBLEMS [02/2019 - 08/2020]
