DTC P0115-11: Engine Coolant Temperature Sensor 1 Circuit Short to Ground [06/2020 - 08/2020]: Procedure
WARNING: This page is about a different variant/trim than selected.
- READ VALUE USING TECHSTREAM (CHECK FOR SHORT IN WIRE HARNESS)

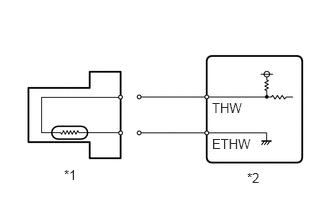

*1 Engine Coolant Temperature Sensor *2 ECM - Disconnect the engine coolant temperature sensor connector.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.
Powertrain > Engine > Data List
Tester Display Coolant Temperature - According to the display on the Techstream, read the Data List.
OK
Techstream Display Specified Condition Coolant Temperature -40°C (-40°F) HINT:
Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
Refer to INITIALIZATION [10/2019 - 08/2020]
Result
Proceed to OK NG
Result:
OK
REPLACE ENGINE COOLANT TEMPERATURE SENSOR
Refer to REMOVAL [02/2019 - 08/2020]
Result:
NG
See step 2
- CHECK HARNESS AND CONNECTOR (ENGINE COOLANT TEMPERATURE SENSOR - ECM)
- Disconnect the engine coolant temperature sensor connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C24-2 or C45-125 (THW) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE ECM
Refer to REMOVAL [02/2019 - 08/2020]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
