DTC P0627-14: Fuel Pump "A" Control Circuit Short to Ground or Open [02/2019 - 06/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF FUEL PUMP CONTROL ECU)

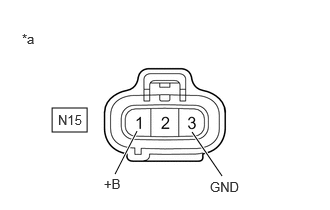

    GTY922560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Fuel Pump Control ECU)
    1. Disconnect the fuel pump control ECU connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      N15-1 (+B) - N15-3 (GND) Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  4

    Result:

    OK

    See step  2

  2. INSPECT ECM (FPC TERMINAL)

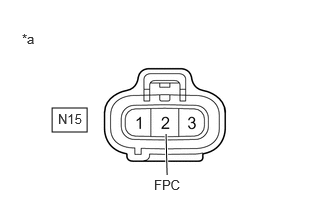

    GTY944793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Fuel Pump Control ECU)
    1. Disconnect the fuel pump control ECU connector.
    2. Connect the Techstream to the DLC3.
    3. Turn the ignition switch to ON.
    4. Turn the Techstream on.
    5. Enter the following menus: Powertrain / Engine / Active Test / Fuel Pump Single Phase Energization.

      Powertrain > Engine > Active Test

      Tester Display
      Fuel Pump Single Phase Energization
    6. Operate the fuel pump control ECU using the Active Test function and measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Techstream Operation Specified Condition
      N15-2 (FPC) - Body ground Before Active Test → During Active Test Before Active Test: Resistance is stable → During Active Test: Resistance fluctuates*

      HINT:

      *: Using the Active Test, duty control of the transistors in the ECM will be performed. Due to the duty control, resistance of the FPC terminal will be unstable during the Active Test. If the resistance is stable before the Active Test and fluctuates while performing the Active Test, it can be determined that the transistor is operating. If the transistor does not operate during the Active Test, the ECM may be malfunctioning.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FUEL PUMP CONTROL ECU

    Refer to REMOVAL [02/2019 - 08/2020]

    Result:

    NG

    See step  3

  3. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - ECM)
    1. Disconnect the fuel pump control ECU connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N15-2 (FPC) - A24-6 (FPC) Always Below 1 Ω
      N15-2 (FPC) or A24-6 (FPC) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [02/2019 - 08/2020]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - BODY GROUND)
    1. Disconnect the fuel pump control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N15-3 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. INSPECT EFI-MAIN NO. 2 RELAY
    1. Inspect the EFI-MAIN NO. 2 relay.

      Refer to PROCEDURE - Step 2

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE EFI-MAIN NO. 2 RELAY

    Result:

    OK

    See step  6

  6. CHECK TERMINAL VOLTAGE (POWER SOURCE OF EFI-MAIN NO. 2 RELAY)
    GTY853759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly
    *2 EFI-MAIN NO. 2 Relay
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      3 (EFI-MAIN NO. 2 relay) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - EFI-MAIN NO. 2 RELAY)

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (EFI-MAIN NO. 2 RELAY - BODY GROUND)
    1. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (EFI-MAIN NO. 2 relay) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (FUEL PUMP CONTROL ECU - EFI-MAIN NO. 2 RELAY)
    1. Disconnect the fuel pump control ECU connector.
    2. Remove the EFI-MAIN NO. 2 relay from the No. 1 engine room relay block and No. 1 junction block assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N15-1 (+B) - 5 (EFI-MAIN NO. 2 relay) Always Below 1 Ω
      N15-1 (+B) or 5 (EFI-MAIN NO. 2 relay) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI-MAIN NO. 1 RELAY - EFI-MAIN NO. 2 RELAY)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
