Pre-Collision System - Diagnostic Codes
>>
Pre-Collision System
>>
DTC U023A-87: Lost Communication with Image Processing Module "A" Missing Message [12/2021 - 10/2022]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U023A-87: Lost Communication with Image Processing Module "A" Missing Message [12/2021 - 10/2022]: Wiring Diagram

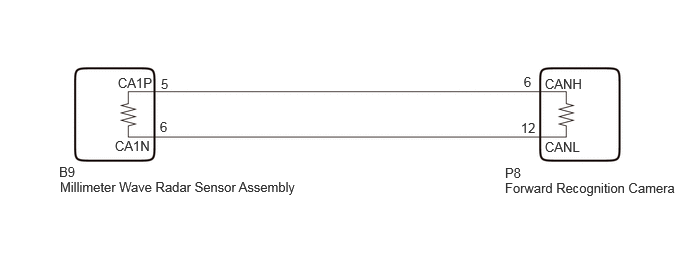

Fig 1: DTC U023A-87: Lost Communication With Image Processing Module "A" Missing Message [12/2021 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
