Components [11/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

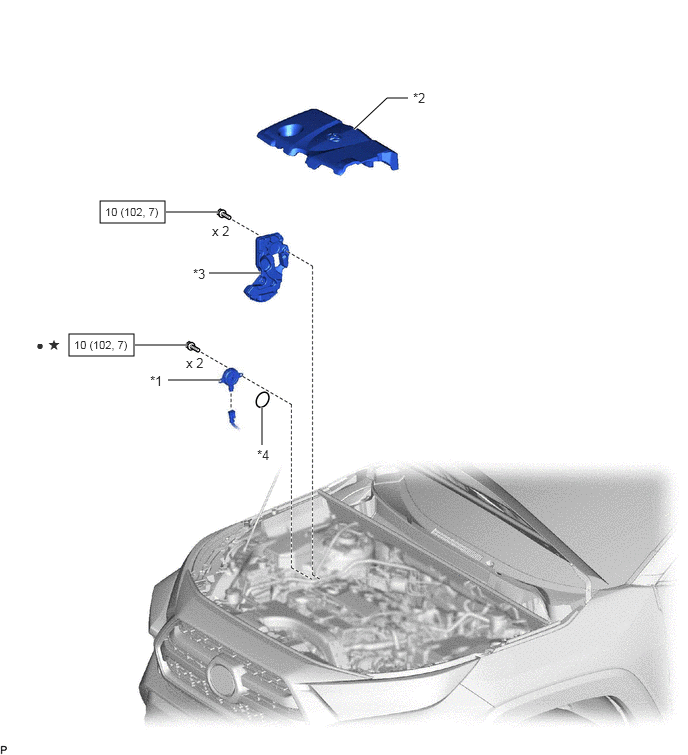

| Callout |
Description |
Callout |
Description |
| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 |
NO. 2 ENGINE COVER |
*4 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |
