System Diagram [11/2018 - 10/2019]

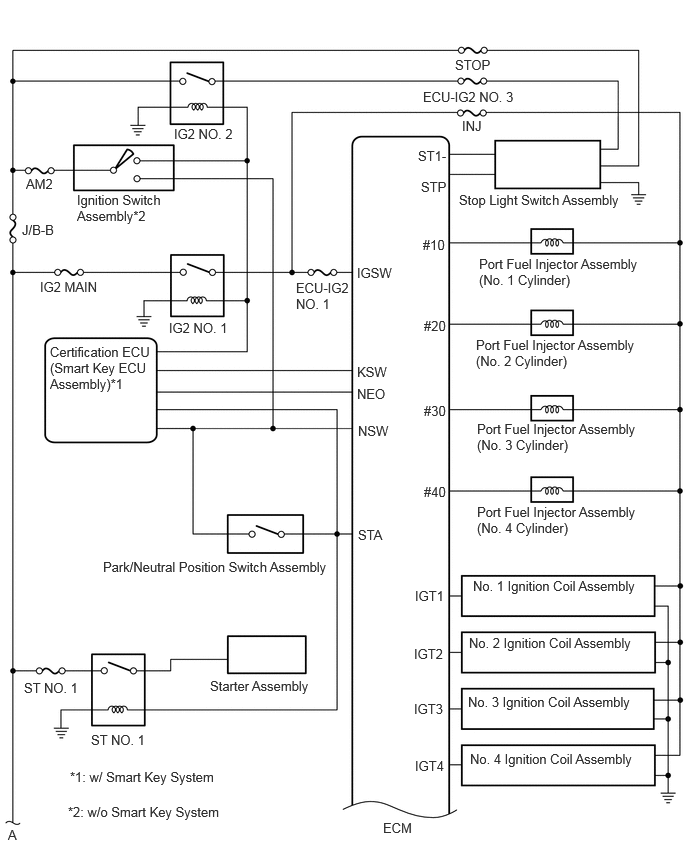

GTY920486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

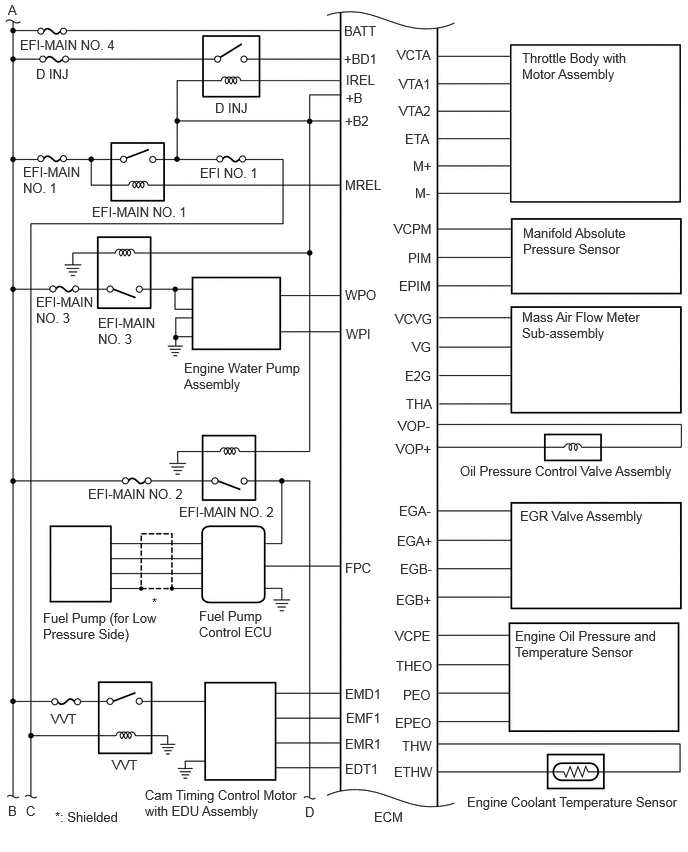

GTY939227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

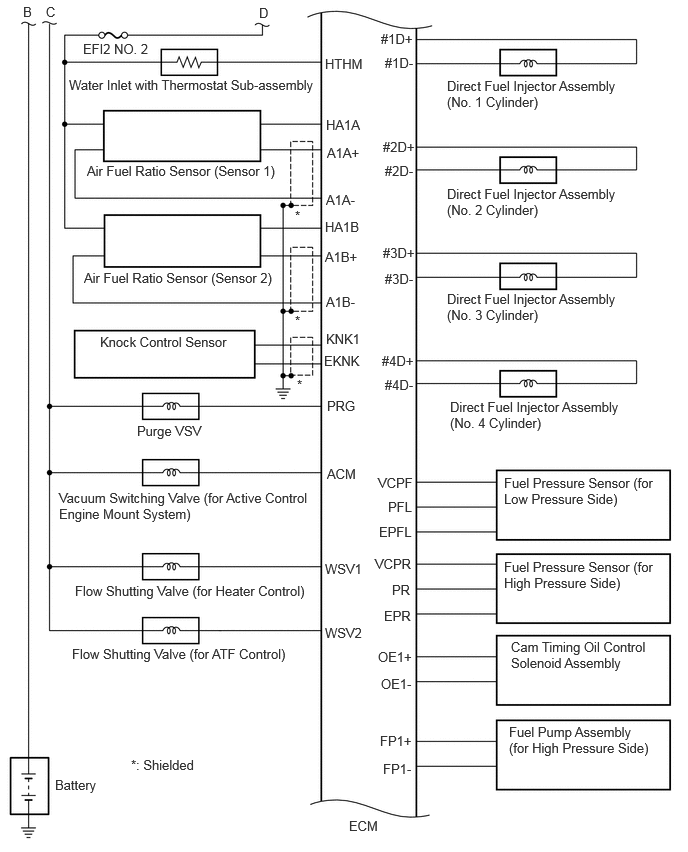

GTY913427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

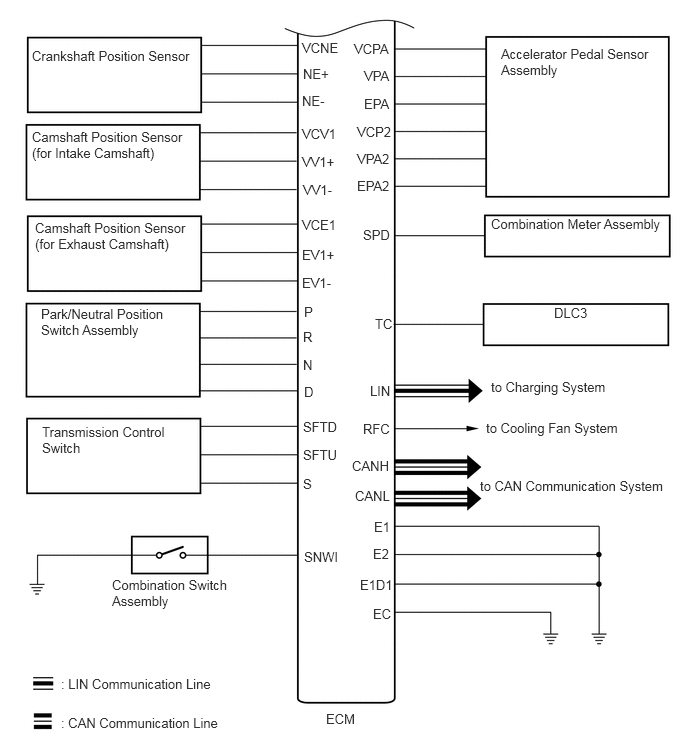

GTY892339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
