Power Source Circuit [11/2017 - ]: Procedure

1. Disconnect the forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

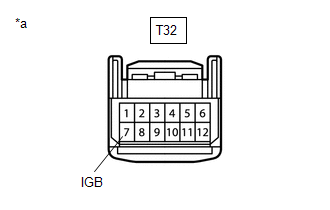

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   T32-7 (IGB) - Body ground	Ignition switch ON	11 to 14 V

4. Turn the ignition switch off.
5. Connect the forward recognition camera connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the forward recognition camera connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

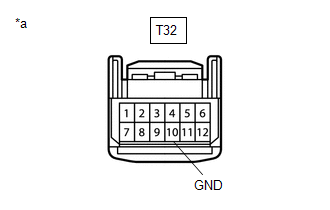

   *a	Front view of wire harness connector (to Forward Recognition Camera)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   T32-10 (GND) - Body ground	Always	Below 1 Ω

3. Connect the forward recognition camera connector.

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2017 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
