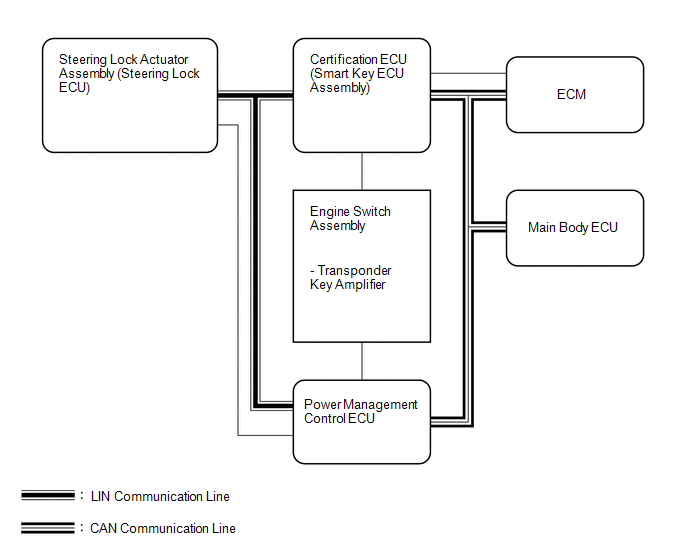

System Diagram [12/2015 - ]
INPUT AND OUTPUT SIGNAL OF EACH ECU
| Transmitting ECU (Transmitter) | Receiving ECU (Receiver) | Signal | Communication Method |
|---|---|---|---|
| Power management control ECU | Steering lock actuator assembly (steering lock ECU) | Power supply status (to steering lock motor) | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Sleep available status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Lock/unlock sensor status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Steering lock status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Motor control status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Diagnostic response status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Lock/unlock sensor malfunction | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Power supply malfunction (to steering lock motor) |
LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Motor driver malfunction | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Lock bar (stuck) status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Push start status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Lock/unlock relay drive status | LIN |
| Steering lock actuator assembly (steering lock ECU) |
|
Engine start control status | LIN |
| Certification ECU | Steering lock actuator assembly (steering lock ECU) | Lock/unlock request | LIN |
| Main body ECU |
|
Driver side door courtesy switch signal | CAN |
