DTC B2312: Power Window Switch Malfunction [08/2015 - 08/2017]: Wiring Diagram

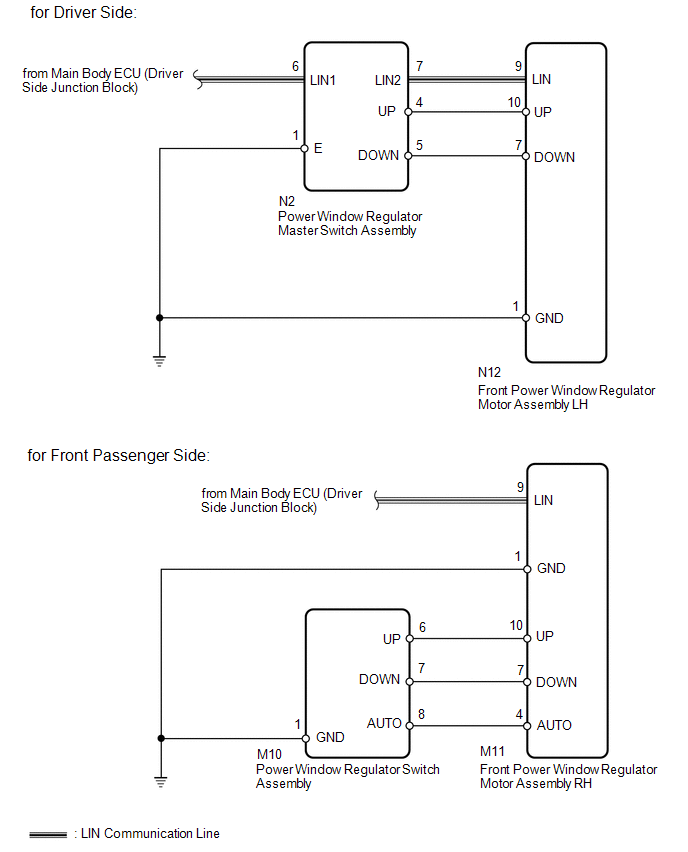

Fig 1: Front Power Window Regulator Motor Assembly RH Wiring Diagram
GTY563220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
