Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2015 - 08/2017]: Procedure

1. Check for LIN communication system DTCs related to the power window control system (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ] ).

   OK

   LIN communication system DTCs are not output.

Result:

NG

GO TO LIN COMMUNICATION SYSTEM

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ] )

Result:

OK

See step  2

1. Check if DTC B2312 is output (Refer to DTC CHECK / CLEAR [08/2015 - ] ).

   OK

   DTC B2312 is not output.

Result:

NG

GO TO DTC (B2312)

(Refer to DTC B2312: Power Window Switch Malfunction [08/2015 - 08/2017] )

Result:

OK

See step  3

1. Use the Data List to check if the front passenger side motor is functioning properly.
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Up SW	Front passenger side power window manual UP switch signal / ON or OFF	ON: Power window regulator switch assembly operated OFF: Power window regulator switch assembly not operated	-
   P Door P/W Down SW	Front passenger side power window manual DOWN switch signal / ON or OFF	ON: Power window regulator switch assembly operated OFF: Power window regulator switch assembly not operated	-

   OK

   The Techstream display changes normally when power window regulator switch assembly is operated.

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2015 - 08/2017] )

Result:

NG

See step  4

1. Disconnect the M10 switch connector.

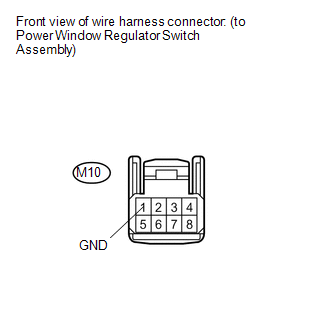

   Fig 1: Power Window Regulator Switch Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M10-1 (GND) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Disconnect the M11 motor connector.

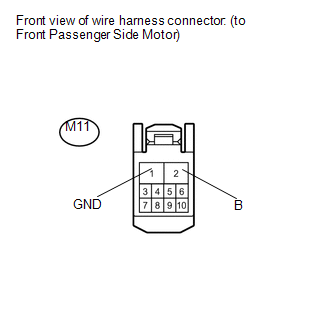

   Fig 2: Front Passenger Side Motor Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   M11-2 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M11-1 (GND) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Disconnect the M10 switch connector.

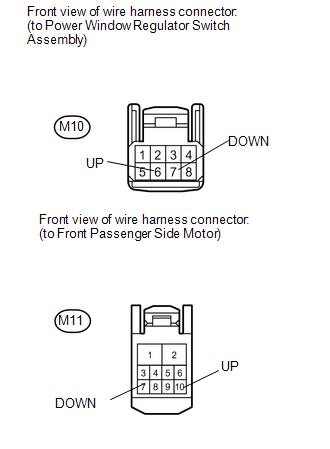

   Fig 3: Power Window Regulator Switch - Front Passenger Side Motor Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the M11 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M10-6 (UP) - M11-10 (UP)	Always	Below 1 Ω
   M10-7 (DOWN) - M11-7 (DOWN)	Always	Below 1 Ω
   M10-6 (UP) - Body ground	Always	10 kΩ or higher
   M10-7 (DOWN) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

1. Remove the power window regulator switch assembly (Refer to REMOVAL [08/2015 - 08/2017] ).

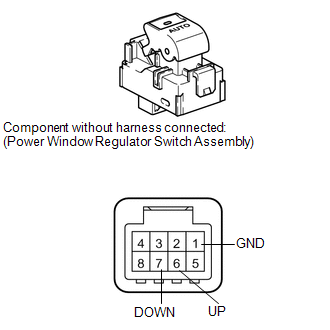

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   6 (UP) - 1 (GND)	Manual UP operation	Below 1 Ω
   7 (DOWN) - 1 (GND)	Manual DOWN operation	Below 1 Ω
   6 (UP) - 1 (GND)	Not operated	10 kΩ or higher
   7 (DOWN) - 1 (GND)	Not operated	10 kΩ or higher

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2015 - 08/2017] )

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2017] )
