Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2017 - ]: Procedure

1. Check for LIN communication system DTCs related to the power window control system (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ] ).

   OK

   LIN communication system DTCs are not output.

Result:

NG

GO TO LIN COMMUNICATION SYSTEM

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ] )

Result:

OK

See step  2

1. Check if DTC B2312 is output (Refer to DTC CHECK / CLEAR [08/2015 - ] ).

   OK

   DTC B2312 is not output.

Result:

NG

GO TO DTC (B2312)

(Refer to DTC B2312: Power Window Switch Malfunction [08/2017 - ] )

Result:

OK

See step  3

1. Use the Data List to check if the front passenger side motor is functioning properly.
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Up SW	Front passenger side power window manual UP switch signal / ON or OFF	ON: Power window regulator switch assembly operated OFF: Power window regulator switch assembly not operated	-
   P Door P/W Down SW	Front passenger side power window manual DOWN switch signal / ON or OFF	ON: Power window regulator switch assembly operated OFF: Power window regulator switch assembly not operated	-

   OK

   The Techstream display changes normally when power window regulator switch assembly is operated.

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2017 - ] )

Result:

NG

See step  4

1. Disconnect the switch connector.

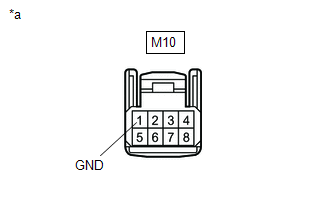

   Fig 1: Power Window Regulator Switch Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Power Window Regulator Switch Assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M10-1 (GND) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Disconnect the motor connector.
   Fig 2: Front Passenger Side Motor Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Front Passenger Side Motor)

2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   M11-2 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M11-1 (GND) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Disconnect the M10 switch connector.
2. Disconnect the M11 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M10-6 (UP) - M11-10 (UP)	Always	Below 1 Ω
   M10-7 (DOWN) - M11-7 (DOWN)	Always	Below 1 Ω
   M10-8 (AUTO) - M11-4 (AUTO)	Always	Below 1 Ω
   M10-6 (UP) - Body ground	Always	10 kΩ or higher
   M10-7 (DOWN) - Body ground	Always	10 kΩ or higher
   M10-8 (AUTO) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

1. Remove the power window regulator switch assembly (Refer to REMOVAL [08/2017 - ] ).
2. Inspect the power window regulator switch assembly (Refer to INSPECTION [08/2015 - ] ).

Result:

OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2017 - ] )

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(Refer to REMOVAL [08/2017 - ] )
