Power Window Control System (W/ Jam Protection Function) - Diagnostic Codes & Symptom Tests
>>
POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function)
>>
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2017 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2017 - ]: Wiring Diagram

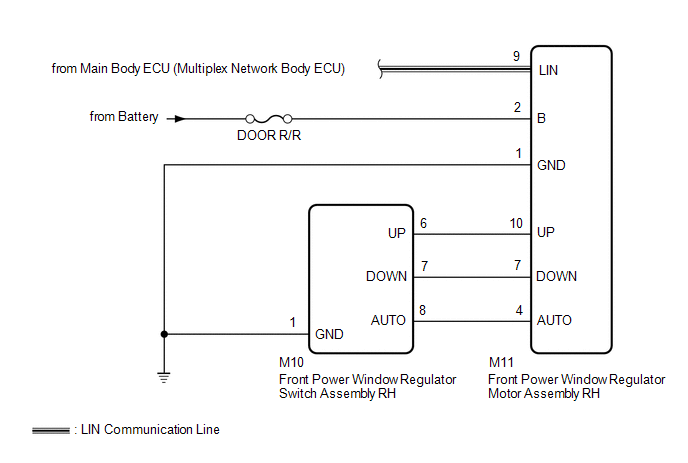

Fig 1: Front Passenger Side Power Window - Front Passenger Side Power Window Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
