POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function)
>>
Rear Power Window LH does not Operate with Rear Power Window Switch LH [08/2015 - 08/2017]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Power Window LH does not Operate with Rear Power Window Switch LH [08/2015 - 08/2017]: Wiring Diagram

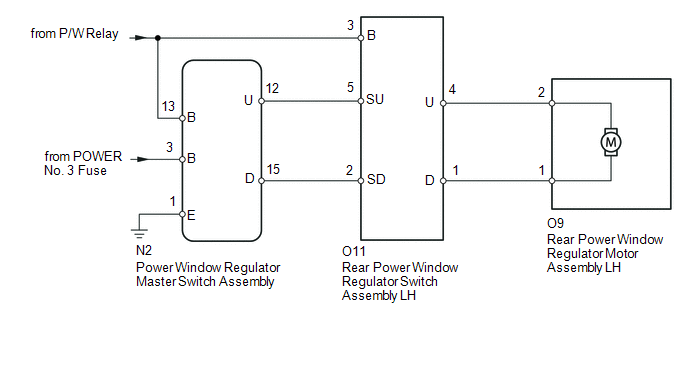

Fig 1: Rear Power Window LH - Rear Power Window Switch LH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
