Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - 08/2017]: Procedure
- CHECK HARNESS AND CONNECTOR (REAR SWITCH RH - BATTERY)
- Disconnect the O5 switch connector.

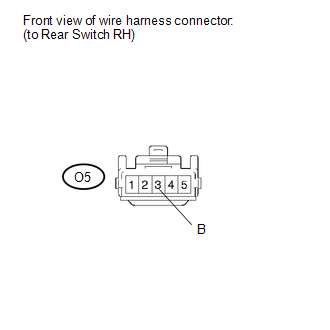

- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition O5-3 (B) - Body ground Ignition switch ON 11 to 14 V
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
- Remove the rear switch RH (Refer to REMOVAL [08/2015 - ] ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 4 (U) - 3 (B) UP Below 1 Ω 1 (D) - 2 (SD) UP Below 1 Ω 4 (U) - 5 (SU) OFF Below 1 Ω 1 (D) - 2 (SD) OFF Below 1 Ω 4 (U) - 5 (SU) DOWN Below 1 Ω 1 (D) - 3 (B) DOWN Below 1 Ω
Result:
NG
REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
(Refer to REMOVAL [08/2015 - ] )
Result:
OK
See step 3

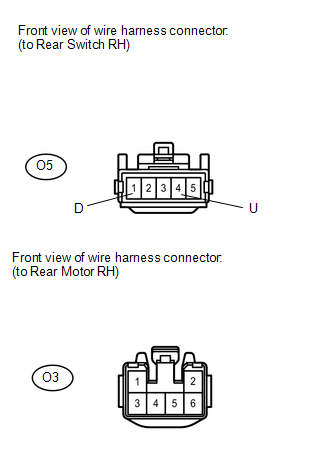

- CHECK HARNESS AND CONNECTOR (REAR SWITCH RH - REAR MOTOR RH)
- Disconnect the O5 switch connector.
- Disconnect the O3 motor connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition O5-1 (D) - O3-1 Always Below 1 Ω O5-4 (U) - O3-2 Always Below 1 Ω O5-1 (D) - Body ground Always 10 kΩ or higher O5-4 (U) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4

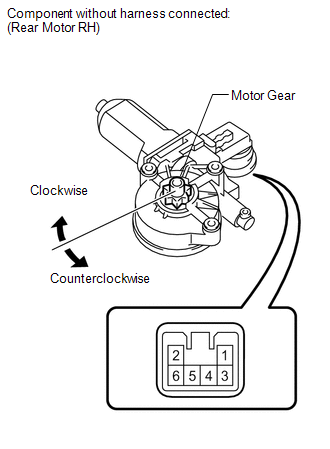

- INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
- Remove the rear motor RH (Refer to REMOVAL [08/2015 - ] ).
- Apply battery voltage to connector terminals 1 and 2.
- Check that the motor gear rotates smoothly as follows.
OK
Measurement Condition Specified Condition Battery positive (+) → 1
Battery negative (-) → 2Motor gear rotates clockwise Battery positive (+) → 2
Battery negative (-) → 1Motor gear rotates counterclockwise
Result:
NG
REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
(Refer to REMOVAL [08/2015 - ] )
Result:
OK
See step 5

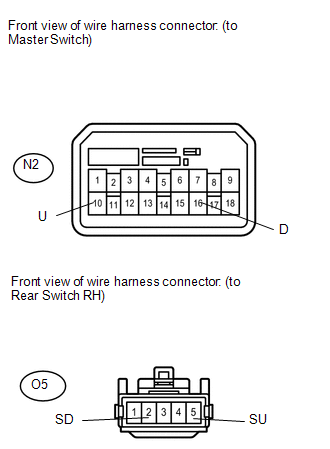

- CHECK HARNESS AND CONNECTOR (MASTER SWITCH - REAR SWITCH RH)
- Disconnect the N2 master switch connector.
- Disconnect the O5 switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N2-10 (U) - O5-5 (SU) Always Below 1 Ω N2-16 (D) - O5-2 (SD) Always Below 1 Ω N2-10 (U) - Body ground Always 10 kΩ or higher N2-16 (D) - Body ground Always 10 kΩ or higher
Result:
OK
REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
(Refer to REMOVAL [08/2015 - 08/2017] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
