Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - 08/2017]: Wiring Diagram

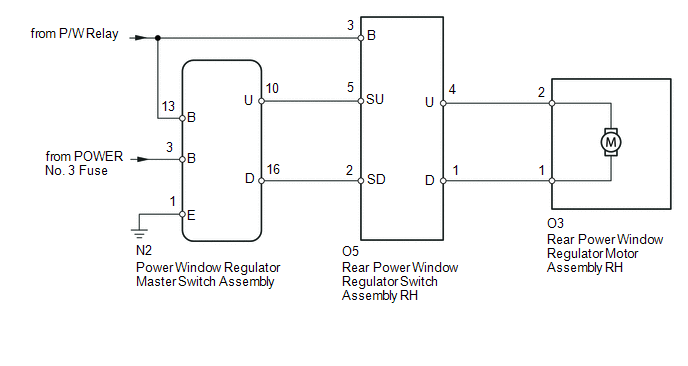

Fig 1: Rear Power Window RH - Rear Power Window Switch RH Wiring Diagram
GTY384208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
