Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2017 - ]: Procedure

CHECK HARNESS AND CONNECTOR (REAR SWITCH RH - BATTERY)

Disconnect the switch connector.

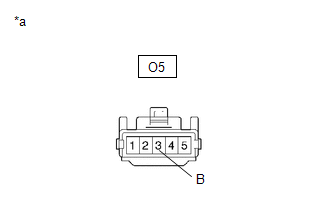

Fig 1: Rear Switch RH Connector End View

GTY758295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Rear Switch RH)

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Switch Condition	Specified Condition
O5-3 (B) - Body ground	Ignition switch ON	11 to 14 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step 2

INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
1. Remove the rear power window regulator switch assembly RH (Refer to REMOVAL [08/2015 - ] ).
2. Inspect the rear power window regulator switch assembly RH (Refer to INSPECTION [08/2015 - ] ).
Result:

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH

(Refer to REMOVAL [08/2015 - ] )

Result:

OK

See step 3

CHECK HARNESS AND CONNECTOR (REAR SWITCH RH - REAR MOTOR RH)

Disconnect the O5 switch connector.
Disconnect the O3 motor connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
O5-1 (D) - O3-1	Always	Below 1 Ω
O5-4 (U) - O3-2	Always	Below 1 Ω
O5-1 (D) - Body ground	Always	10 kΩ or higher
O5-4 (U) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step 4

INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
1. Remove the rear power window regulator motor assembly RH (Refer to REMOVAL [08/2015 - ] ).
2. Inspect the rear power window regulator motor assembly RH (Refer to INSPECTION [08/2015 - ] ).
Result:

NG

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2015 - ] )

Result:

OK

See step 5

CHECK HARNESS AND CONNECTOR (MASTER SWITCH - REAR SWITCH RH)

Disconnect the N2 master switch connector.
Disconnect the O5 switch connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
N2-10 (U) - O5-5 (SU)	Always	Below 1 Ω
N2-16 (D) - O5-2 (SD)	Always	Below 1 Ω
N2-10 (U) - Body ground	Always	10 kΩ or higher
N2-16 (D) - Body ground	Always	10 kΩ or higher

Result:

OK

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(Refer to REMOVAL [08/2017 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
