Parts Location [08/2015 - 08/2017]: Illustration

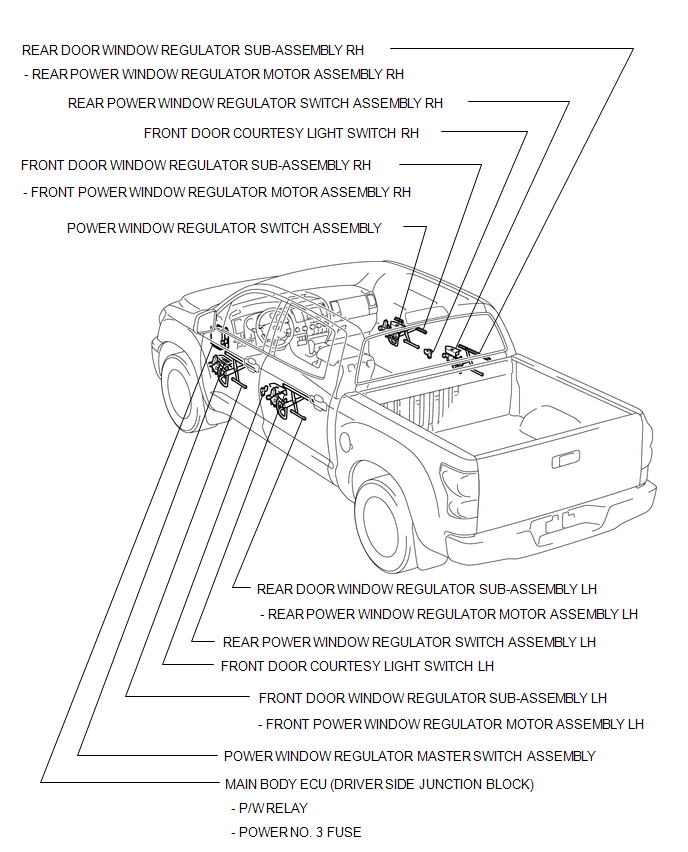

Fig 1: Power Window Control System (W/ Jam Protection Function) Replacement Components (1 Of 2)
GTY565637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

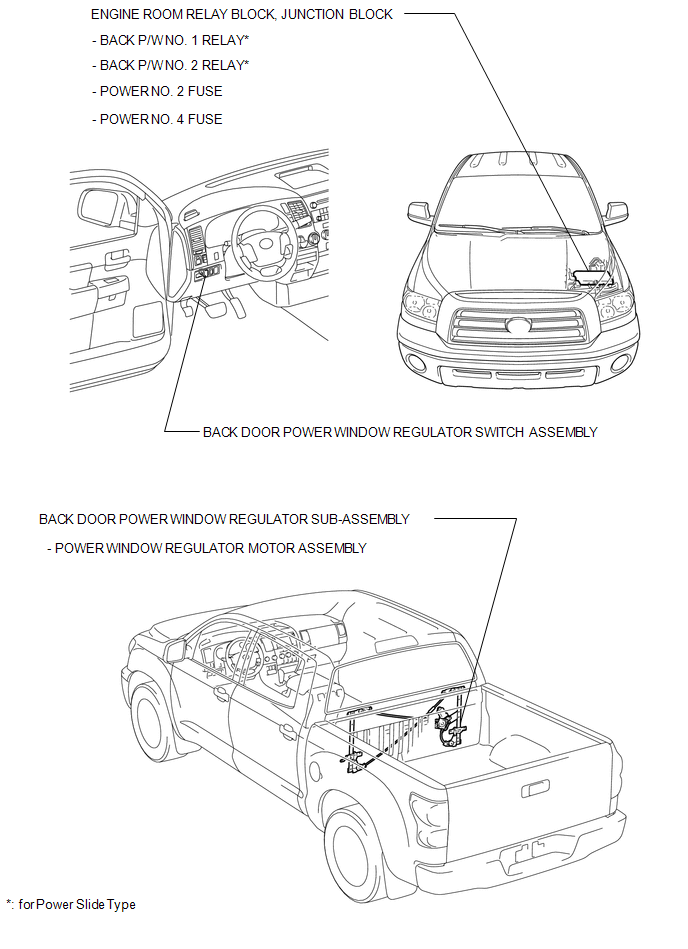

Fig 1: Power Window Control System (W/ Jam Protection Function) Replacement Components (2 Of 2)
GTY610386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
