Parts Location [08/2017 - ]: Illustration

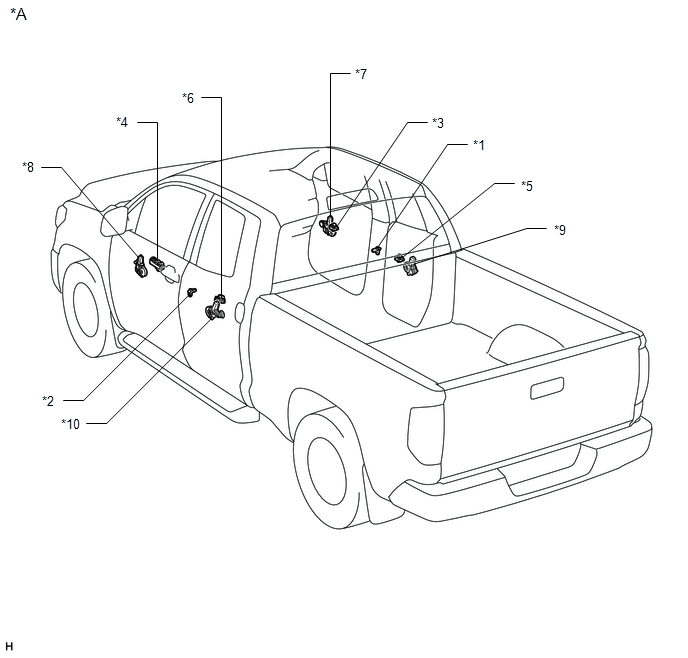

Fig 1: Power Window Control System (W/ Jam Protection Function) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Double Cab	-	-
*1	FRONT DOOR COURTESY LIGHT SWITCH RH	*2	FRONT DOOR COURTESY LIGHT SWITCH LH
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY	*4	POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
*5	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH	*6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH
*7	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH	*8	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
*9	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH	*10	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

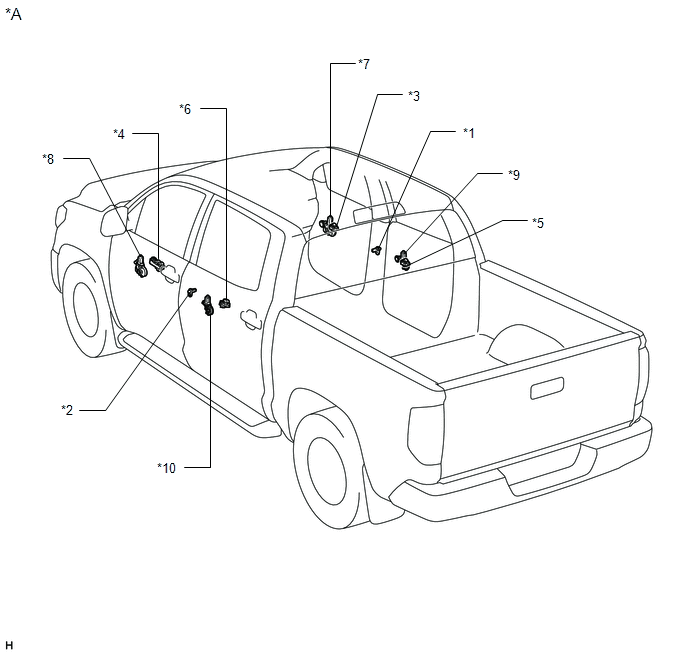

Fig 1: Power Window Control System (W/ Jam Protection Function) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for CrewMax	-	-
*1	FRONT DOOR COURTESY LIGHT SWITCH RH	*2	FRONT DOOR COURTESY LIGHT SWITCH LH
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY	*4	POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
*5	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH	*6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH
*7	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH	*8	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
*9	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH	*10	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

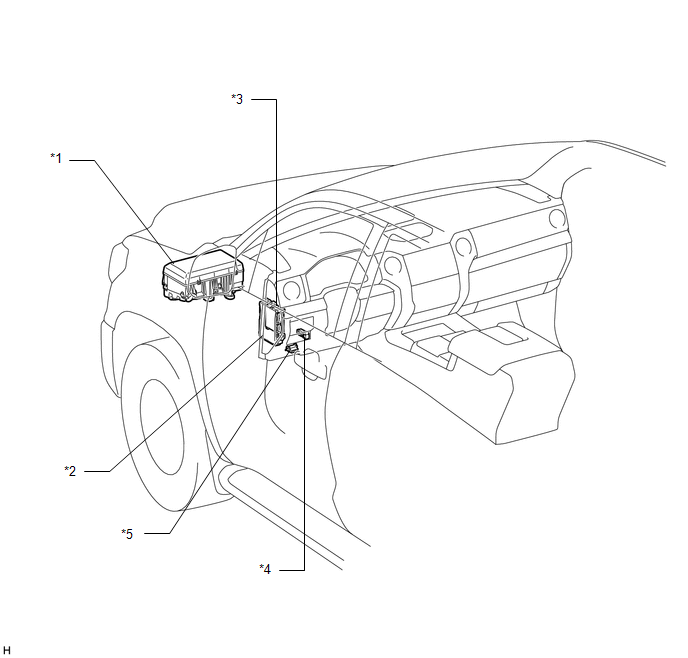

Fig 1: Power Window Control System (W/ Jam Protection Function) Replacement Components (3 Of 4)

*1	ENGINE ROOM RELAY BLOCK, JUNCTION BLOCK - BACK P/W NO. 1 RELAY (for Power Slide Type) - BACK P/W NO. 2 RELAY (for Power Slide Type) - POWER NO. 2 FUSE	*2	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - PWR RELAY - POWER FUSE - ECU-B NO. 2 FUSE - DOOR FUSE - DOOR R/R FUSE - DOOR R/L FUSE
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	BACK DOOR POWER WINDOW REGULATOR SWITCH ASSEMBLY
*5	DLC3	-	-

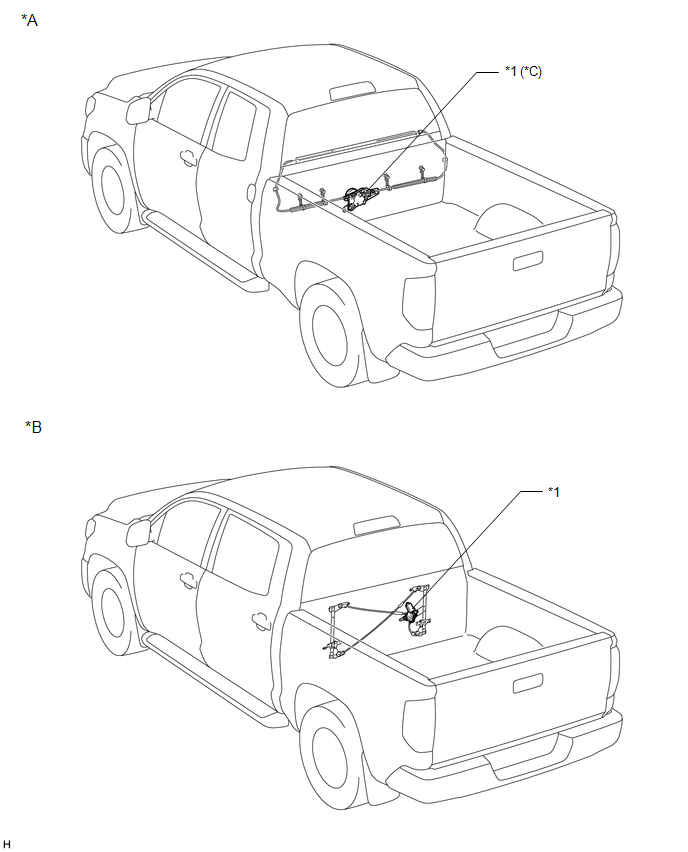

Fig 1: Power Window Control System (W/ Jam Protection Function) Replacement Components (4 Of 4)

*A	for Double Cab	*B	for CrewMax
*C	for Power Slide Type	-	-
*1	POWER WINDOW REGULATOR MOTOR ASSEMBLY	-	-
