Driver Side Power Window does not Operate with Power Window Master Switch [08/2015 - 08/2017]: Wiring Diagram

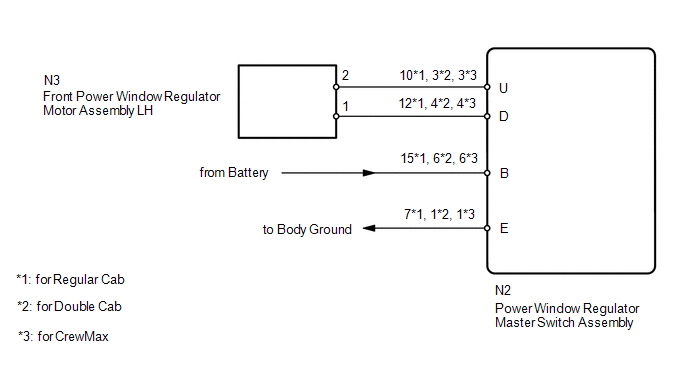

Fig 1: Driver Side Power Window - Power Window Master Switch Wiring Diagram
GTY608684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
