Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2015 - 08/2017]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

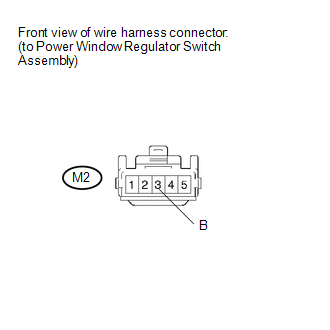

1. Disconnect the M2 switch connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   M2-3 (B) - Body ground	Ignition switch ON	11 to 14 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

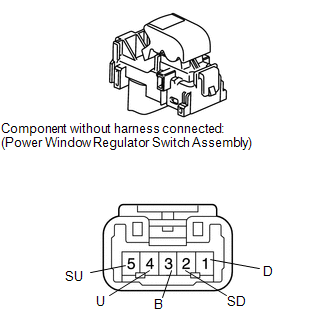

1. Remove the power window regulator switch assembly (See Reference. Refer to REMOVAL [08/2015 - 08/2017] ).
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   4 (U) - 3 (B)	UP	Below 1 Ω
   1 (D) - 2 (SD)
   4 (U) - 5 (SU)	OFF	Below 1 Ω
   1 (D) - 2 (SD)
   4 (U) - 5 (SU)	DOWN	Below 1 Ω
   1 (D) - 3 (B)

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2017] )

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

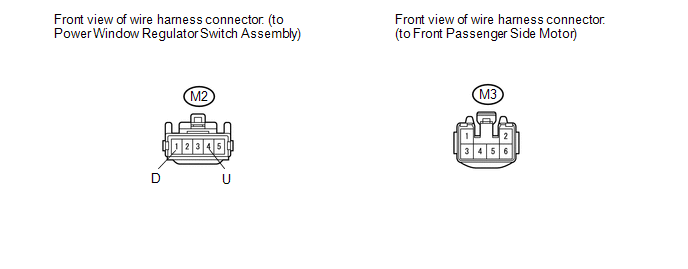

1. Disconnect the M2 switch connector.
2. Disconnect the M3 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M2-1 (D) - M3-1	Always	Below 1 Ω
   M2-4 (U) - M3-2	Always	Below 1 Ω
   M2-1 (D) or M3-1 - Body ground	Always	10 kΩ or higher
   M2-4 (U) or M3-2 - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

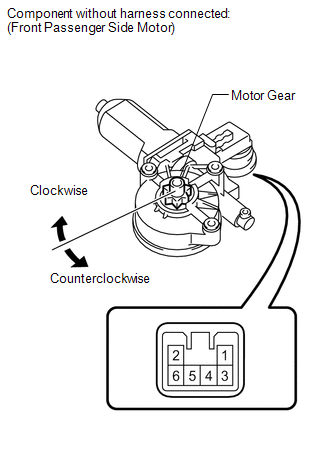

1. Remove the front passenger side motor (See Reference. Refer to REMOVAL [08/2015 - 08/2017] ).
2. Apply battery voltage to connector terminals 1 and 2.
3. Check that the motor gear rotates smoothly as follows.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates clockwise
   Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates counterclockwise

Result:

NG

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2015 - 08/2017] )

Result:

OK

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

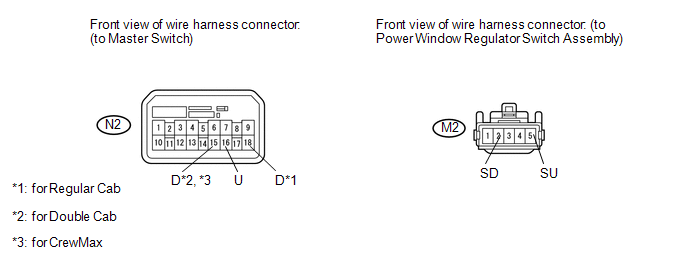

1. Disconnect the N2 master switch connector.
2. Disconnect the M2 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   FOR REGULAR CAB:



   Tester Connection	Condition	Specified Condition
   N2-16 (U) - M2-5 (SU)	Always	Below 1 Ω
   N2-18 (D) - M2-2 (SD)	Always	Below 1 Ω
   N2-16 (U) or M2-5 (SU) - Body ground	Always	10 kΩ or higher
   N2-18 (D) or M2-2 (SD) - Body ground	Always	10 kΩ or higher

   FOR DOUBLE CAB:



   Tester Connection	Condition	Specified Condition
   N2-16 (U) - M2-5 (SU)	Always	Below 1 Ω
   N2-15 (D) - M2-2 (SD)	Always	Below 1 Ω
   N2-16 (U) or M2-5 (SU) - Body ground	Always	10 kΩ or higher
   N2-15 (D) or M2-2 (SD) - Body ground	Always	10 kΩ or higher

   FOR CREWMAX:



   Tester Connection	Condition	Specified Condition
   N2-16 (U) - M2-5 (SU)	Always	Below 1 Ω
   N2-15 (D) - M2-2 (SD)	Always	Below 1 Ω
   N2-16 (U) or M2-5 (SU) - Body ground	Always	10 kΩ or higher
   N2-15 (D) or M2-2 (SD) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

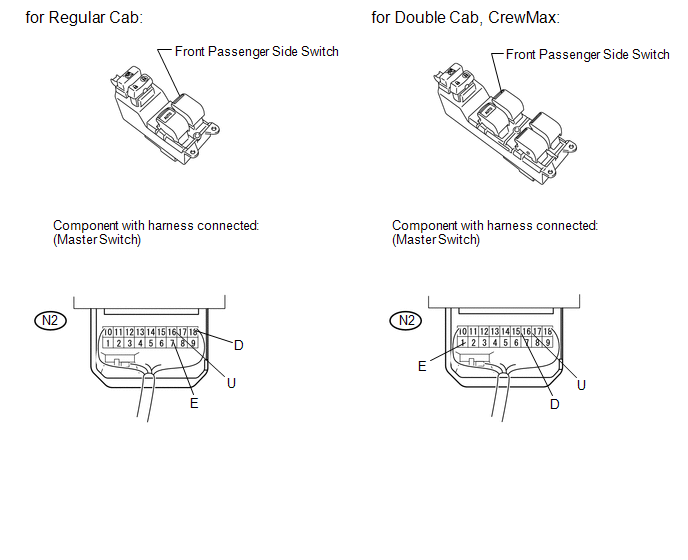

1. Remove the master switch (See Reference. Refer to REMOVAL [08/2015 - 08/2017] ).
2. Reconnect the master switch connector.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   FOR REGULAR CAB:



   Tester Connection	Switch Condition	Specified Condition
   N2-16 (U) - N2-7 (E)	Ignition switch ON, front passenger side switch of master switch OFF → UP	Below 1 V → 11 to 14 V
   N2-18 (D) - N2-7 (E)	Ignition switch ON, front passenger side switch of master switch OFF → DOWN

   FOR DOUBLE CAB:



   Tester Connection	Switch Condition	Specified Condition
   N2-16 (U) - N2-1 (E)	Ignition switch ON, front passenger side switch of master switch OFF → UP	Below 1 V → 11 to 14 V
   N2-15 (D) - N2-1 (E)	Ignition switch ON, front passenger side switch of master switch OFF → DOWN

   FOR CREWMAX:



   Tester Connection	Switch Condition	Specified Condition
   N2-16 (U) - N2-1 (E)	Ignition switch ON, front passenger side switch of master switch OFF → UP	Below 1 V → 11 to 14 V
   N2-15 (D) - N2-1 (E)	Ignition switch ON, front passenger side switch of master switch OFF → DOWN

Result:

OK

GO TO POWER WINDOWS DO NOT OPERATE AT ALL

(Refer to Power Windows do not Operate at All [08/2015 - 08/2017] )

Result:

NG

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2017] )
