Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2017 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the switch connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition

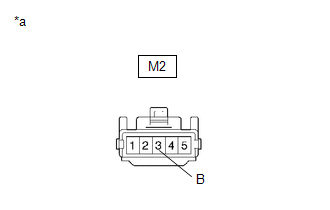

   M2-3 (B) - Body ground	Ignition switch ON	11 to 14 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Remove the power window regulator switch assembly (Refer to REMOVAL [08/2017 - ] ).
2. Inspect the power window regulator switch assembly (Refer to INSPECTION [08/2015 - ] ).

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

(Refer to REMOVAL [08/2017 - ] )

Result:

OK

See step  3

1. Disconnect the M2 switch connector.
2. Disconnect the M3 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M2-1 (D) - M3-1	Always	Below 1 Ω
   M2-4 (U) - M3-2	Always	Below 1 Ω
   M2-1 (D) or M3-1 - Body ground	Always	10 kΩ or higher
   M2-4 (U) or M3-2 - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Remove the front power window regulator motor assembly RH (Refer to REMOVAL [08/2017 - ] ).
2. Inspect the front power window regulator motor assembly RH (Refer to INSPECTION [08/2015 - ] ).

Result:

NG

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [08/2017 - ] )

Result:

OK

See step  5

1. Disconnect the N2 master switch connector.
2. Disconnect the M2 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N2-16 (U) - M2-5 (SU)	Always	Below 1 Ω
   N2-15 (D) - M2-2 (SD)	Always	Below 1 Ω
   N2-16 (U) or M2-5 (SU) - Body ground	Always	10 kΩ or higher
   N2-15 (D) or M2-2 (SD) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Remove the power window regulator master switch assembly (Refer to REMOVAL [08/2017 - ] ).
2. Inspect the power window regulator master switch assembly (Refer to ON-VEHICLE INSPECTION [08/2017 - ] ).

Result:

OK

GO TO POWER WINDOWS DO NOT OPERATE AT ALL

(Refer to Power Windows do not Operate at All [08/2017 - ] )

Result:

NG

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(Refer to REMOVAL [08/2017 - ] )
