Power Windows do not Operate at All [08/2015 - 08/2017]: Procedure

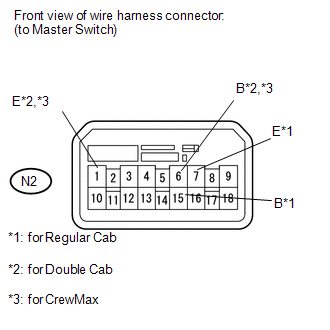

Fig 1: Master Switch Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the N2 master switch connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   FOR REGULAR CAB:



   Tester Connection	Switch Condition	Specified Condition
   N2-15 (B) - Body ground	Ignition switch ON	11 to 14 V

   FOR DOUBLE CAB:



   Tester Connection	Switch Condition	Specified Condition
   N2-6 (B) - Body ground	Ignition switch ON	11 to 14 V

   FOR CREWMAX:



   Tester Connection	Switch Condition	Specified Condition
   N2-6 (B) - Body ground	Ignition switch ON	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   FOR REGULAR CAB:



   Tester Connection	Condition	Specified Condition
   N2-7 (E) - Body ground	Always	Below 1 Ω

   FOR DOUBLE CAB:



   Tester Connection	Condition	Specified Condition
   N2-1 (E) - Body ground	Always	Below 1 Ω

   FOR CREWMAX:



   Tester Connection	Condition	Specified Condition
   N2-1 (E) - Body ground	Always	Below 1 Ω

Result:

OK

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2017] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
