Power Windows do not Operate at All [08/2015 - 08/2017]: Wiring Diagram

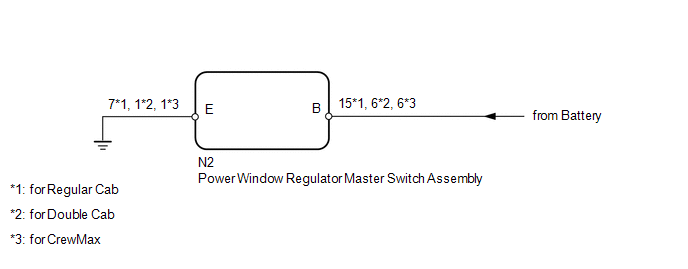

Fig 1: Power Window Regulator Master Switch Wiring Diagram
GTY547396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
