Power Windows do not Operate at All [08/2017 - ]: Procedure
- CHECK HARNESS AND CONNECTOR (MASTER SWITCH - BATTERY AND BODY GROUND)

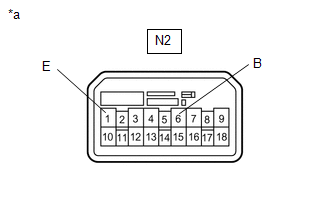

*a Front view of wire harness connector
(to Master Switch)- Disconnect the N2 master switch connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition N2-6 (B) - Body ground Ignition switch ON 11 to 14 V - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N2-1 (E) - Body ground Always Below 1 Ω
Result:
OK
REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
(Refer to REMOVAL [08/2017 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
